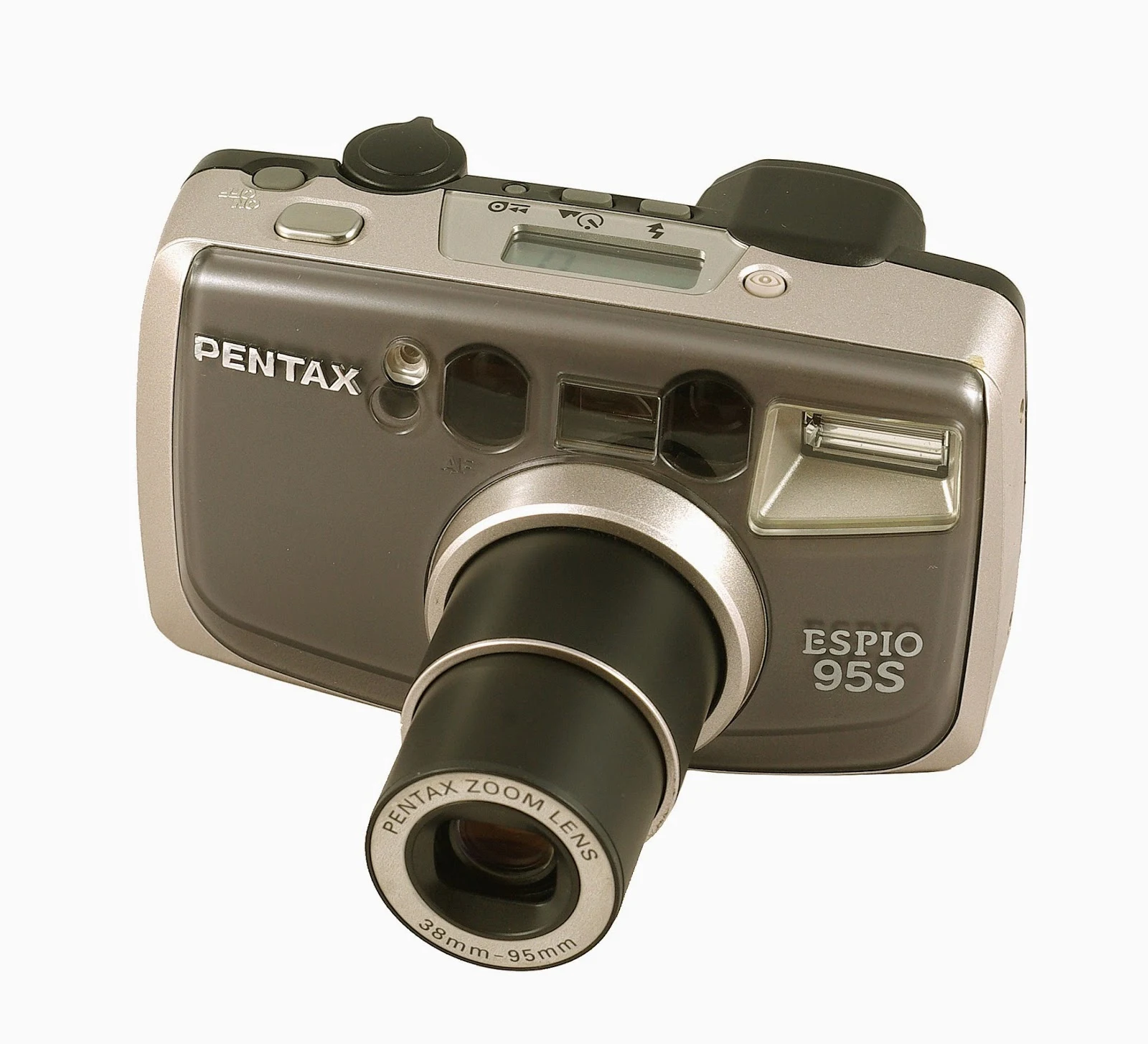

Pentax Espio 95S (2001)

Pentax Espio 95S (2001)

Espio 150 SL silver (2001)

Espio 150 SL Sahara Gold date (2001)

Pentax Espio 170 SL (2001)

SPECIFICATIONS

-35mm fully automatic lens-shutter with built-in zoom lens and auto flash

-Auto film speed setting with 35mm perforated DX - coded film with ISO rating from 25 - 3200

(1EV step). Non - DX coded films are automatically set to IS025

-24x36mm (Approx. 13 x 36 in panorama format)

-Auto film loading. Closing the back cover will automatically wind the film to first exposure.

-Auto film winding (single - frame)

-Auto film rewinding at the end of roll. Auto stop upon completion of rewinding. Rewinding time:

approx. 25sec. with 24 - exposure film. Rewinding in mid - roll provided.

-Automatic readout of successive frame numbers in ascending order when shooting, and

descending order when rewinding.

-Pentax power zoom 38 - 150mmf/5.6 - 12

8 elements in 6 groups, Angle of view: 75° - 16.5°

-Pentax power zoom 38 - 170mmf/5.6 - 12.8

8 elements in 6 groups, Angle of view: 75° - 14.5°

-Pentax phase-matching passive five-point autofocus system. Autofocusing range: 0.75m (2.45

ft) - infinity (at wide), 1.2m (3.9ft) - infinity (at telephoto), Maximum magnification: approx.0.14X.

Focus lock is provided. Infinity-landscape mode (focus is fixed to infinity), AF illuminator is auto-

matically emitted in low light/ or hard-to-autofocus subject.

-Pentax phase-matching passive five-point autofocus system. Autofocusing range: 0.75m

(2.45ft) - infinity (at wide), 1.2m (3.9ft) - infinity (at telephoto), Maximum magnification:

approx.0.15X. Focus lock is provided. Infinity-landscape mode (focus is fixed to infinity), AF illu-

minator is automatically emitted in low light/ or hard-to-autofocus subject.

-Electronic zoom

-Programmed AE electronic shutter with speed approx.1/360 - 2 sec. Bulb: 1/2 sec.- 1min,

Electromagnetic release.

-Electronic lamp indication. Approx.10 sec. Cancellation after activation is possible.

-Standard/panorama switchable. Actual image zoom viewfinder, Viewfinder area: 80%,

Magnification: 0.44X (38mm WIDE) - 1.50X (150mm TELE), Diopter adjustment range: -3 to

+1m Five-point AF frames for Wide-angle and Telephoto settings, Spot AF frame. Picture

frame. Close distance compensation frame. Panorama format picture area, Green lamp lighting:

in-focus signal Green lamp blinking: When subject is too close and/or hard-to-aulofocus subject,

Red lamp lighting: Flash-ready status, Red lamp blinking: Flash being charged

-Standard/panorama switchable, Actual image zoom viewfinder, Viewfinder area: 80%,

Magnification: 0.44X (38mm WIDE) - 1.68X (170mm TELE), Diopter adjustment range: -3 to

+1m Five-point AF frames for Wide-angle and Telephoto settings. Spot AF frame, Picture

frame. Close distance compensation frame. Panorama format picture area, Green lamp lighting:

in-focus signal Green lamp blinking: When subject is too close and/or hard-to-autofocus subject,

Red lamp lighting: Flash-ready status, Hed lamp blinking: Flash being charged

-Programmed auto-exposure control with multi segment (2) metering system, Range: EV10 -

EV17at 38mm WIDE, EV14 - EV19 at 150mm TELE in Auto or Daylight-Sync Mode (ISO 400),

EV4 - EV17 at 38mm WIDE EV6 - EV19at 150mm in Slow-Shutter-Speed Mode (ISO 400),

Automatic exposure compensation in a backlit situation.

-Programmed auto-exposure control with multi segment (2) metering system, Range: EV10 -

EV17at 38mm WIDE, EV14 - EV19 at 170mm TELE in Auto or Daylight-Sync Mode (ISO 400),

EV4 - EV17 at 38mm WIDE EV6 -EV19 at 170mm in Slow-Shutter-Speed Mode (ISO 400),

Automatic exposure compensation in a backlit situation.

-Built-in flash with red-eye reduction mode, Automatic discharge in low lighting and backlighting

situations in auto mode, Flash ON=Day-light Sync/Slow-Shutter-Speed Sync (up to 2 sec ),

Flash - OFF Mode, Bulb-Sync 1/2 sec. - 1min.

-0.75 (2.45ft)-7.1 (23ft) m (38mm WIDE), 1.2 (3.9ft) - 3.9m (13ft) (150mm TELE) (ISO 400 film

-0.75 (2.45ft) - 7.1 (23ft) m (38mm WIDE), 1.2 (3.9ft) - 3.9m (13ft) (170mm TELE) (ISO 400 film

used).

Pentax Espio 60S (2001)

SPECIFICATIONS Type: 35mm lens shutter camera with zoom lens and built-in flash. Film: 35mm DX film; picture format: 24 x 36mm Lens: 35mm /F6.3 ~ 60mm / F10.2, motor zoom lens Shutter: Electronically-programmed shutter Viewfinder: Reverse galilean albada zoom finder; coverage:80% ± 5% Magnification: 0.49 x (35mm) ~ 0.78 x (60mm) Flash: Built-in flash, recharge time is 4 seconds Flash range: 35mm (Wide): 1.2 - 3.2m (ISO 100); 1.2 - 6.3m (ISO 400) 60mm (Tele): 1.8 - 2.0m (ISO 100); 1.8 ~ 3.9m (ISO 400) Photograph modes: Functional modes: self timer, red-eye reduction Auto flash, flash on, flash off Film transport: Auto loadinq, auto advance, auto rewind (including mid-roll rewind) Film speed: ISO 100/200, 400 with auto setting, DX code Self-timer: Electronically-controlled timer, approximately 10 seconds delay LCD panel: Exposure counter, photograph mode, battery symbol Power Source: 1.5V AA alkaline battery x 2 Dimensions and weight: 70.0mm (height) x 115.0mm (width) x 48.0mm (depth) (2.8" x 4.5" x 1.9") 195g / 6.9oz (without battery) DATE MODEL Dimentions and weight: 70.0mm (height) X 115.0mm (width) X 53.0mm (depth) (2.8" x 4.5" x 2.1") 200g / 7.1 oz (without battery) Date printing: 5 modes (Date model only)

Pentax Espio 105S (2001)

SPECIFICATIONS

Type: 35mm fully automatic lens-shutter with built-in zoom lens and auto flash

Film:------------------Auto film speed setting with 35mm perforated DX-coded film with ISO rating

from 25-3200 (1EV step). Non-DX coded films are automatically set to IS025

Format:----------------24x36mm

Film loading:-------------Auto film loading. Closing the back cover will automatically wind the film to

first exposure.

Film winding:-----------Auto film-winding (single-frame)

Film rewinding:----------Auto film rewinding at the end of roll. Auto stop upon completion of rewind-

ing.

Rewinding time:---------approx. 20 sec. with 24-exposure film. Rewinding in mid-roll provided.

Frame number:----------Automatic readout of successive frame numbers in ascending order when

shooting, and descending order when rewinding.

Lens:------------- -----Pentax power zoom 38-105mm f/4.5-11 6 elements in 5 groups, Angle of

view: 59 - 23.5°

Focusing system:---------Pentax infrared active autofocusing with focus lock, Autofocusing range:

0.65m (2.1ft) - infinity, maximum magnification: approx. 0.188X. Infinity-

landscape mode (focus is fixed to infinity)

Zooming:---------------Electronic zoom

Shutter:-----------------Programmed AE electronic shutter with speed approx. 1/320 - 1 sec. Bulb:

1/2 sec.-5 min, Electromagnetic release.

Self-timer:--------------Electronic red lamp indication. Approx. 10 sec. Cancellation after activation is

possible.

Viewfinder:--------------Actual image zoom viewfinder. 83% of field of view ratio, Magnification:

0.42X (38mm ) - 1.03X(105mm), Diopter: -0.3 - i lm ', Picture frame, Close

distance compensation frame, Green lamp lighting ( O ): in-focus signal

Green lamp blinking: Subject is too close and/or the flash is being charged.

Exposure control:--------Programmed auto-exposure control. Range: EV10 - EV17 at 38mm, EV14 -

EV19 at 105mm TELE in Auto or Daylight-Sync mode (ISO 400), EV6.5 -

EV17 at 38mm EV7.0 -EV19 at 105mm in Slow-Shutter-Speed mode (ISO

400)

Flash:------------------Built-in flash with red-eye reduction mode, Automatic flash emission in low-

luminance, Flash ON=Day-light Sync/Slow-Shutter-Speed Sync (up to 1

sec.), Flash-OFF=Flash override, Bulb-Sync: 1/2 sec. - 5min.

Flash effective range:-----0.65 - 8.2m (38mm ), 0.65 - 3.3m (105mm ) (ISO 400 film used).

Flash recycling time:-----Approx. 5 sec. under Pentax testing conditions.

Power source:-----------One 3V lithium battery (CR-123A or the equivalent)

Battery life:-------------Approx.15 rolls of 24 exposure film when 50% of shooting uses flash (under

Pentax testing conditions)

Battery exhaustion

warning:---------------- appears on the LCD panel, Shutter is locked when  is blinking.

Size & Weight:----------118.5(W) x 69.0(H) x 53.5(D)mm (4.7" x 2.7" x 2.1") 240g (8.5oz) without

battery

DATE MODEL

Date mechanism:---------Crystal quartz controlled; LCD with digital clock, auto calendar up to 2049.

Imprinting mode:--------"Year, Month and Day", "Day, Hour and Minutes","— blank", "Month, Day

and Year" or "Day, Month and Year".

Size & Weight:----------118.5 (W) x 69.0(H) x 55.5(D)mm (4.7" x 2.7" x. 2.2") 245g (8.6oz) with-

out battery

Pentax Espio 105 SW (2001)

SPECIFICATIONS

Type:-35mm fully automatic lens-shutter with built-in zoom lens and auto flash

Film:-Auto film speed setting with 35mm perforated DX - coded film with ISO rating from 25 - 3200

(1EV step). Non - DX coded films are automatically set to IS025

Format:-24x36mm (Approx. 13 x 36 in panorama format)

Film loading:-Auto film loading. Closing the back cover will automatically wind the film to first exposure.

Film winding:-Auto film winding (single - frame)

Film rewinding:-Auto film rewinding at the end of roll. Auto stop upon completion of rewinding. Rewinding time:

approx. 25sec. with 24 - exposure film. Rewinding in mid - roll provided.

Frame number:-Automatic readout of successive frame numbers in ascending order when shooting, and

descending order when rewinding.

Lens:

IQZoom 105SW-Pentax power zoom 28 - 105mmf/5.6 - 11.5

6 elements in 5 groups, Angle of view: 75.5° - 23.3°

IQZoom 120SW-Pentax power zoom 28 - 120mmf/5.6 -12.8

6 elements in 5 groups, Angle of view: 75.5° - 20.5°

Focusing system:

IQZoom 105SW-Pentax phase-matching passive five-point autofocus system. Autofocusing range: 0.5m (1.64 ft)

- infinity, Maximum magnification: approx.0.27X. Focus lock is provided. Infinity-landscape mode

(focus is fixed to infinity), AF illuminator is automatically emitted in low light/ or hard-to-autofo-

cus subject.

IQZoom 120SW-Pentax phase-matching passive five-point autofocus system. Autofocusing range: 0.5m (1.64ft)

- infinity, Maximum magnification: approx.0.32X . Focus lock is provided. Infinity-landscape

' mode (focus is fixed to infinity), AF illuminator is automatically emitted in low light/ or hard-to-

autofocus subject.

Zooming:-Electronic zoom

Shutter:-Programmed AE electronic shutter with speed approx.1/360 - 2 sec. Bulb: 1/2 sec.- 1min,

Electromagnetic release.

-Electronic lamp indication Approx.10 sec. Cancellation after activation is possible.

-Standard/panorama switchable, Actual image zoom viewfinder, Viewfinder area: 83%,

Magnification: 0.32X (28mm WIDE) - 1.13X (105mm TELE), Diopter adjustment range: -3 to

+1m ', Five-point AF frames for Wide-angle and Telephoto settings, Spot AF frame, Picture

frame, Close distance compensation frame, Panorama format picture area, Green lamp lighting:

in-focus signal Green lamp blinking: When subject is too close and/or hard-to-autofocus subject,

Red lamp lighting: Flash-ready status, Red lamp blinking: Flash being charged

-Standard/panorama switchable. Actual image zoom viewfinder, Viewfinder area: 83%,

Magnification: 0.32X (28mm WIDE) - 1.26X (120mm TELE), Diopter adjustment range: -3 to

+1m ', Five-point AF frames for Wide-angle and Telephoto settings. Spot AF frame, Picture

frame, Close distance compensation frame, Panorama format picture area, Green lamp lighting:

in-focus signal Green lamp blinking: When subject is too close and/or hard-1o-autofocus subject,

Red lamp lighting: Flash-ready status, Red lamp blinking: Flash being charged

-Programmed auto-exposure control with multi segment (2) metering system, Range: EV10 -

EV17at 28mm WIDE, EV13 - EV19 at 105mm TELE in Auto or Daylight-Sync Mode (ISO 400),

EV6 - EV17 at 28mm WIDE EV6 - EV19at 105mm in Slow-Shutter-Speed Mode (ISO 400),

Automatic exposure compensation in a backlit situation.

-Programmed auto-exposure control with multi segment (2) metering system, Range: EV10 -

EV17at 28mm WIDE, EV13.5 - EV19 at 120mm TELE in Auto or Daylight-Sync Mode (ISO

400), EV6 - EV17 at 28mm WIDE EV6 -EV19 at 120mm in Slow-Shutter-Speed Mode (ISO

400), Automatic exposure compensation in a backlit situation.

- Built-in flash with red-eye reduction mode. Automatic discharge in low lighting and backlighting

situations in auto mode, Flash ON=Day-light Sync/Slow-Shutter-Speed Sync (up to 2 sec ),

Flash - OFF Mode, Bulb-Sync 1/2 sec. - 1min.

-0.59 (1.95ft) - 6.6 (22ft) m (28mm WIDE), 0.5 (1.64ft) - 3.6m (12ft) (105mm TELE) (ISO 400

film used).

-0.59 (1.95ft) - 6.6 (22ft) m (28mm WIDE), 0.5 (1.64ft) - 3.2m (10ft) (120mm TELE) (ISO 400

film used).

Flash recycling time:-Approx. 5 sec. under Pentax testing conditions.

Power source-One 3V lithium battery (CR - 2 or the equivalent)

Battery life:-Approx. 8rolls of 24exposure film when 50% of shooting uses flash (under Pentax testing con-

ditions)

Battery exhaustion

warning:-(Q ) appears on the LCD panel, Shutter is locked when (J) is blinking.

Size & Weight:

IQZoom 105SW-111 (W) x 59.5 (H) x 41 (D) mm (4.4" x 2.3" x 1.6") 190g (6.7oz) without battery

IQZoom 120SW-111 (W) x 59.5 (H) x 41 (D) mm (4.4" x 2.3" x 1.6") 190g (6.7oz) without battery

DATE MODEL

Date mechanism:-Crystal quartz controlled; LCD with digital clock, auto calendar up to 2100. Possible to imprint

both standard and panoramic format frames.

Imprinting mode:-"Year, Month and Day", "Day, Hour and Minutes, "-—" blank, Month, Day and Year" or "Day,

Month and Year".

Size & Weight:

IQZoom 105SW-111 (W) x 59.5 (H) x 41 (D) mm (4.4" x 2.3" x 1.6") 190g (6.7oz) without battery

IQZoom 120SW-111 (W) x 59.5 (H) x 41 (D) mm (4.4" x 2.3" x 1.6") 190g (6.7oz) without battery

REMOTE CONTROL

Remote control:-Infrared wireless remote control, 3-seconds delay shutter release, Effective range: Closer than

5m when projected from the camera's front.

Power source for-One lithium battery CR1620 (replaced by Pentax Service facility)

Remote Control:

Size & weight for-22.0 (W) x 53.0 (L) x 6.5 (D) mm (0.9" x 2.1" X0.3"), 7g (0.2oz) including battery

Pentax Espio 95 WR (2001)

SPECIFICATIONS

-35mm fully automatic lens-shutter with built-in zoom lens and auto flash, Weather-

resistant (JIS class 5)

-Auto film speed setting with 35mm perforated DX-coded film with ISO rating from 25-

3200 (1EV step). Non-DX coded films are automatically set to IS025

-24x36mm (Approx. 13x36 in panorama format)

-Auto film loading. Closing the back cover will automatically wind the film to first expo-

sure.

-Auto film winding (single-frame)

-Auto film rewinding at the end of roll. Auto stop upon completion of rewinding.

Rewinding time: approx. 20 sec. with 24-exposure film. Rewinding in mid-roll provid-

ed.

-Automatic readout of successive frame numbers in ascending order when shooting,

and descending order when rewinding.

-Pentax power zoom 38-95mm f/4.5 -10.5 6 elements in 5 groups, Angle of view: 59'

- 25.5"

-Pentax phase-matching passive five-point autofocus system. Autofocusing range:

0.65m (2.1ft) - infinity, Maximum magnification: approx. 0.17 X. Focus lock is provid-

ed. Infinity-landscape mode (focus is fixed to infinity), Focus aid illuminator is auto-

matically emitted in low light / or hard-to-autofocus subject.

-Electronic zoom

-Programmed AE electronic shutter with speed approx. 1/400 - 4 sec. Bulb: 1/2 sec.-5

min, Electromagnetic release.

-Electronic lamp indication. Approx. 10 sec. Cancellation after activation is possible.

-Standard / panorama switchable, Actual image zoom viewfinder, Viewfinder area:

83%, Magnification: 0.43 X (38mm WIDE) - 0.96 X (95mm TELE), Diopter adjust-

ment: -3 to + 1 m~', Five-point AF frames for Wide-angle and Telephoto settings, Spot

AF frame, Picture frame. Close distance compensation frame, Panorama format pic-

ture area, Green lamp lighting: in-focus signal Green lamp blinking: When subject is

too close and / or hard-to-autofocus subject, Red lamp lighting: Flash-ready status,

Red lamp blinking: Flash being charged

Exposure control:-Programmed auto-exposure control with multi segment (2) metering system, Range:

EV10 - EV18 at 38mm WIDE, EV13.5 - EV20 at 95mm TELE in Auto or Daylight-Sync

Mode (ISO 400), EV4 - EV18 at 38mm WIDE EV5 - EV20 at 95mm in Slow-Shutter-

Speed Mode (ISO 400), Automatic exposure compensation in a backlit situation.

Flash:-Built-in flash with red-eye reduction mode, Automatic discharge in low lighting and

backlighting situations in auto mode, Flash ON = Day-light Sync / Slow-Shutter-

Speed Sync (up to 4 sec.), Flash-OFF Mode, Bulb-Sync 1/2 sec. - 5min.

Flash effective range:-0.65 - 8.5m (38mm WIDE), 0.65 - 5.0m (95mm TELE) (ISO 400 film used).

Flash recycling time:-Approx. 5 sec. under Pentax testing conditions.

Power source:-One 3V lithium battery (CR-123A or the equivalent)

Battery life:-Approx. 13 rolls of 24 exposure film when 50% of shooting uses flash (under Pentax

testing conditions)

Battery exhaustion warning: ( Q ) appears on the LCD panel, Shutter is locked when ( 0 ) is blinking.

Size & Weight:-132 (W) x 76 (H) x 58.5 (D) mm (5.2" x 3.0" x 2.3") 360g (12.7oz) without battery

DATE MODEL

Date mechanism:-Crystal quartz controlled; LCD with digital clock, auto calendar up to 2030. Possible

to imprint both standard and panoramic format frames.

Imprinting mode: -"Year, Month and Day", "Day, Hour and Minutes, "-—" blank, Month, Day and Year"

or "Day, Month and Year".

Size & Weight:-132 (W) x 76 (H) x 58.5 (D) mm (5.2" x 3.0" x 2.3") 360g (12.7oz) without battery

REMOTE CONTROL

Remote control: -Infrared wireless remote control, 3-seconds delay shutter release, Effective range:

Closer than 5m when projected from the camera's front.

Power source for Remote

Control:-One lithium battery CR1620 (replaced by Pentax Service facility)

Size & weight for Remote

Control:-22.0 (W) x53.0 (L) x 6.5 (D) mm (0.9" x 2.1" x 0.3"), 7g (0.2oz) including battery

Pentax PC-5000 (2001)





Pentax PC-5000 date (2001)





Pentax Espio 80V (2002)

SPECIFICATIONS

Type: 35mm fully automatic tens-shutter with built-in

zoom lens and auto flash

Film : 24 x 36 mm formal, Auto film speed setting with

35mm perforated DX-coded film wilh ISO rating from 25-

3200(1 EV step). Non-DX coded films are set to IS025

Film loading, Film winding : Auto lilm loading. Auto fitm

winding (single-frame)

Film rewinding: Aulo film rewinding at the end ol roll.

Auto stop upon completion of rewinding, Rewinding in

mid-roll provided.

Lens: Penlax power zoom 38-80mm f/6.3-12.5,5

elements In 5 groups

Angle of view: 59*- 30.5*

Focusing system: Pentax infrared active autofocus

system with focus lock

Focusing Range: 0.8m(2.6ft) - inlinity. maximum

magnification: approx. 0.11 x.

Infinity-landscape mode(Focus is lixed to inlinity).

Zooming: Electronic zoom

Shutter: Programmed AE electronic shutter with speed

approx.1/300 - 2 sec.

Self-timer: LED lamp indication. Delay lime approx.10

sec.

Viewfinder: Actual image zoom viewfinder. 83% of field

of view ratio

Magnification: 0.12 x (38mm WIDE) - 0.78 x (80mm

TELE), Diopter1.0 m '

Frames: Autofocus frame, Picture frame, Close distance

correction frame

Green lamp lighting(O): Flash is charged.

Green lamp blinking: Flash is being charged.

Exposure control: Programmed auto-exposure control.

Exposure Range: Aulo or Daylight-Sync mode(IS0400):

EV10.5 - EV17.5 at 38mm WIDE, EV13.5-EV19.0 at

80mm TELE. Slow Shutter Speed mode(IS0100): EV8.0 -

EV17.5 al 38mm WIDE, EV8.0 - EV19.0 al 80mm TELE.

Flash : Built-in (lash with red-eye reduction mode.

Automatic Hash emission in low-luminance, Flash

ON-Oay-light Sync/Slow Shutter Speed Sync(up lo 2

sec.), Flash OFF=FIash override

Flash recycling time: Approx. 7 sec. under Pentax

testing conditions.

Power source: One 3V lilhium battery(CR123 A or Ihe

equivalent), Auto power shut-off in 3 min.

Battery life: Approx.15 rolls ol 24-Exposure film when

using Hash 50% ol Ihe time(under Pentax testing

conditions)

Batlery exhaustion warning: (fl) appears on the

LCD panel, Shutter is locked, when(Q) is blinking.

Size & Weight: 120.5(W) x 70.5(H) x 51.5(D) (4.7" x 2.8'

x 2") 225g(7.9oz) without batlery

DATE MODEL

Date mechanism : Crystal quartz controlled; LCD with

digital clock, aulo calendar up to 2049.

Imprinting mode: "Year, Month and Day", "Day, Hour

and Minules"," — blank", "Month, Day and Year" or

"Day, Month and Year".

Size & Weight: 120.5 (W) x 70.5(H) x 53.0(D) mm (4.7- x

2.8" X 2.1") 230g(8.1oz) Without battery.   Pentax Espio 80V silver date (2002) SPECIFICATIONS Type: 35mm fully automatic tens-shutter with built-in zoom lens and auto flash Film : 24 x 36 mm formal, Auto film speed setting with 35mm perforated DX-coded film wilh ISO rating from 25- 3200(1 EV step). Non-DX coded films are set to IS025 Film loading, Film winding : Auto lilm loading. Auto fitm winding (single-frame) Film rewinding: Aulo film rewinding at the end ol roll. Auto stop upon completion of rewinding, Rewinding in mid-roll provided. Lens: Penlax power zoom 38-80mm f/6.3-12.5,5 elements In 5 groups Angle of view: 59*- 30.5* Focusing system: Pentax infrared active autofocus system with focus lock Focusing Range: 0.8m(2.6ft) - inlinity. maximum magnification: approx. 0.11 x. Infinity-landscape mode(Focus is lixed to inlinity). Zooming: Electronic zoom Shutter: Programmed AE electronic shutter with speed approx.1/300 - 2 sec. Self-timer: LED lamp indication. Delay lime approx.10 sec. Viewfinder: Actual image zoom viewfinder. 83% of field of view ratio Magnification: 0.12 x (38mm WIDE) - 0.78 x (80mm TELE), Diopter1.0 m ' Frames: Autofocus frame, Picture frame, Close distance correction frame Green lamp lighting(O): Flash is charged. Green lamp blinking: Flash is being charged. Exposure control: Programmed auto-exposure control. Exposure Range: Aulo or Daylight-Sync mode(IS0400): EV10.5 - EV17.5 at 38mm WIDE, EV13.5-EV19.0 at 80mm TELE. Slow Shutter Speed mode(IS0100): EV8.0 - EV17.5 al 38mm WIDE, EV8.0 - EV19.0 al 80mm TELE. Flash : Built-in (lash with red-eye reduction mode. Automatic Hash emission in low-luminance, Flash ON-Oay-light Sync/Slow Shutter Speed Sync(up lo 2 sec.), Flash OFF=FIash override Flash recycling time: Approx. 7 sec. under Pentax testing conditions. Power source: One 3V lilhium battery(CR123 A or Ihe equivalent), Auto power shut-off in 3 min. Battery life: Approx.15 rolls ol 24-Exposure film when using Hash 50% ol Ihe time(under Pentax testing conditions) Batlery exhaustion warning: (fl) appears on the LCD panel, Shutter is locked, when(Q) is blinking. Size & Weight: 120.5(W) x 70.5(H) x 51.5(D) (4.7" x 2.8' x 2") 225g(7.9oz) without batlery DATE MODEL Date mechanism : Crystal quartz controlled; LCD with digital clock, aulo calendar up to 2049. Imprinting mode: "Year, Month and Day", "Day, Hour and Minules"," — blank", "Month, Day and Year" or "Day, Month and Year". Size & Weight: 120.5 (W) x 70.5(H) x 53.0(D) mm (4.7- x 2.8" X 2.1") 230g(8.1oz) Without battery. Pentax Espio 115V (2002) SPECIFICATIONS Type: -35mm fully automatic lens-shutter with built-in zoom lens and auto flash Film:-Auto film speed setting with 35mm perforated DX-coded film with ISO rat- ing at 100 & 400. Non-DX coded films are set to IS0100 Format: -24 x 36mm Film loading:-Auto film loading. Closing the back cover will automatically wind the film to first frame. Film winding:-Auto film winding (single-frame) Film rewinding: -Auto film rewinding at the end of roll. Auto stop upon completion of rewinding. Rewinding time: approx. 20 sec. with 24-exposure film. Rewinding in mid-roll provided. Frame number: -Automatic readout of successive frame numbers in ascending order when shooting, and descending order when rewinding. Lens:-Pentax power zoom 38-115mm f/4.3-12.2, 5 elements in 5 groups, Angle of view: 59°-21.5° Focusing system: -Pentax infrared active autofocusing with focus lock, Range: 0.8m (2.6ft) - infinity, maximum magnification: approx. 0.17X. Infinity-landscape mode (focus is fixed to infinity) Zooming: -Electronic zoom Shutter:-Programmed AE electronic shutter with speed approx.1/500-2sec. Electromagnetic release. Self-timer:-LED lamp indication. Delay time approx. 10 sec. Cancellation after activa- tion is possible. Viewfinder:-Actual image zoom viewfinder. 83% of field of view ratio, Magnification: 0.44X (38mm WIDE) — 1.23X (115mm TELE), Diopter: -1m ', Autofocus frame, Picture frame, Close distance correction frame, Green lamp light- ing (O): possible to take a picture, Green lamp blinking: Subject is too close and/or the flash is being charged. Programmed auto-exposure control. Range: EV9.5-EV17 at 38mmWIDE, EV13.5-EV19 at 115mm TELE in Auto or Daylight-Sync mode (ISO 400), EV8.0-EV17 at 38mm WIDE EV8.0-EV19 at 115mm in Slow Shutter Speed mode (ISO 400) Built-in flash with red-eye reduction mode, Automatic flash emission in low-luminance, Flash ON=Day-light Sync/Slow Shutter Speed Sync (up to 2 sec.), Flash OFF=Flash override, 0.8-7.9m (38mm), 0.8-2.8m (115mm TELE) (ISO 400 film used). Approx. 7 sec. under Pentax testing conditions. One 3V lithium battery (CR-123A or the equivalent) Approx.15 rolls of 24-Exposure film when 50% of shooting uses flash (under Pentax testing conditions) (o) appears on the LCD panel, Shutter is locked when (o) is blinking. 120.5 (W) x 70.5 (H) x 46.3 (D) mm (4.7" x 2.8" x 1.9") 240g (8.50z) with- out battery Crystal quartz controlled; LCD with digital clock, auto calendar up to 2049. "Year, Month and Day", "Day, Hour and Minutes","— blank", "Month, Day and Year" or "Day, Month and Year". 120.5 (W) x 70.5 (H) x 49.3 (D) mm (4.7" x 2.8" x 2.0") 245g (8.7oz) with- out battery Pentax Espio 115S (2002)   Pentax Espio 140V (2003) SPECIFICATIONS Type: 35 mm fully automatic lens-shutter with built-in zoom lens and auto flash Film: Auto film speed setting with 35 mm perforated DX- coded film with ISO rating from 25-3200 (1 EVstep), Non-DX coded films are set to ISO 25 Format: 24 x 36 mm Film loading: Auto film loading. Closing the back cover will automatically wind the film to first frame. Film winding: Auto film winding. Film rewinding: Auto film rewinding at the end of roll. Auto stop upon completion of rewinding. Rewinding time: approx. 25 sec. with 24-exposure film. Rewinding in mid-roll provided. Frame number: Automatic readout of successive frame numbers in ascending order when shooting, and descending order when rewinding. External Display: LCD (Liquid Crystal Display) Lens: 38-140mm f/5.8-11.8, 8 elements in 6 groups, Angle of view: 59°-17.5° Focusing system: Pentax phase-matching passive 5 point autofocus. Landscape mode, Spot AF, AF illuminator, Focus lock, Autofocusing range: 0.8m (2.62ft) - at Wide- angle and 1.15m (3.77 ft) - at Telephoto Macro zoom mode Maximum magnification: approx. 0.12 x (Equivalent to A4 size) Zooming: Electronic zoom Shutter: Programmed AE electronic shutter with speed approx. 1/360-2 sec. Electromagnetic release. Self-timer: LED lamp indication. Delay time approx. 10 sec. Cancellation after activation is possible. Viewfinder: Actual image zoom viewfinder. 80% field of view. Magnification: 0.44 x (WIDE) - 1.49 x (TELE) Diopter adjustment range: -3m1 - +1 m1 (per meter) Frame: Autofocus frame, Picture frame, Close distance compensation frame Green lamp lit: in-focus, Green light blinks: out of focus or hard-to-autofocus subject. Red lamp lit: Flash is charged, Red lamp blinks:Flash is charging. Exposure control: Programmed AE control (AE compensation in a back light situation) Range: EV 10.5-17.5 at WIDE, EV 14-19 at TELE in Auto or Daylight-Sync mode (ISO 400). EV6-EV17.5 at WIDE, EV6-EV19 at TELE in Slow Shutter Speed mode (ISO 400) Exposure meter switch: shutter release button Flash: Built-in zoom flash with red-eye reduction, Automatic flash discharge in low light and back light situations in Auto mode, Flash ON=Day-light Sync, Slow Shutter Speed Sync, (up to 2 sec.) Automatic soft flash discharge at close-up distance. Flash effective range: 0.8-6.2 m (1-22.3 ft) (WIDE), 1.15-3.6 m (1.64- 9.84 ft) (TELE) (ISO 400 film used). Flash recycling time: Approx. 5 sec.(under Pentax testing conditions.) Date module: Crystal quartz controlled LCD digital clock, auto calendar up to the year 2100. Date imprint from the front side of film. Imprinting mode: © "Year, Month, Day", © "Day, Hour, Minute", ©"......" (no imprint), © "Month, Day, Year" © "Day, Month, Year. Power source: One 3V lithium battery (CR123A or equivalent) Battery life: Approx. 14 rolls of 24-Exposure film when 50% of shooting uses flash (under Pentax testing conditions) Battery exhaustion warning: (D) appears on the LCD panel, Shutter is locked when (Q) is blinking. Size & Weight: 120.5(W) x 60.5(H) x 42(D) mm (4.8" x 2.4" x 1.7") 21 Og (6.9 oz) without battery Optional Remote control: Infrared remote control unit releases the shutter 3 seconds after the shutter button on the unit is pressed. Works up to 5 meters from the front of the camera. Pentax Espio 60V (2003) Type: 35mm fully automatic lens-shutter camera with built-in zoom lens, autofocus, auto exposure and auto flash Film: 35mm DX-coded film with 24mm x 36mm format Lens: Power zoom 35mm-60mm F6.3-F10.3 lens; 4 elements in 4 groups Focusing System: Infrared active autofocus system Focusing Range: 0.9m (0.3ft) to infinity (at 35mm). 1.2m (3.9ft) to infinity (at 35mm) Exposure Control: Programmed auto exposure control. Shutter: Programmed AE electronic lens shutter Shutter Speed: Approx1/250 sec. to 1/3 sec. Viewfinder: Inverted Galilean zoom viewfinder Viewfinder Area: 80% (at 3m) External LCD indication: Exposure counter, battery exhaustion warning Film Loading: Automatic film loading with first-frame positioning Film Winding: Automatic film winding Film Rewinding: Automatic film rewinding at the end of roll. Automatic stop upon rewind completion (Mid-roll rewinding possible) Film-Speed Setting: Automatic film-speed setting at ISO 100 or ISO 400 with DX-coded film. Self-Timer: 10-second delay electronic self-timer Flash: Built-in flash. Automatic discharge in low lighting conditions in auto mode. Flash recycling Time: Approx. 4 sec. with fresh alkaline battery Flash modes: red-eye reduction, Flash-on, Flash-off and self-timer. Auto Power Shut-Off: Automatic shut off after approx. 5 minutes of non use Power Source: Two 1.5 AA alkaline batteries (LR6) Dimensions: 115.0 (W) x 67.0 (H) x 39.0 (D) (4.5" x 2.6" x 1.5") Weight: 185g (6.5oz.) without battery Additional spec for the Espio 60V Date Date Imprinting: Five-mode switchable: " Year - Month - Day", "Month - Day - Year", "Day - Month - Year", "Day - Hour - Minute" and blank Dimensions: 115.0 (W) x 67.0 (H) x 44.0 (D) (4.5" x 2.6" x 1.7") Weight: 190g (6.8oz.) without battery
