1991 - 1995

Pentax zoom 70-R (1991)

SPECIFICATIONS:

Type:

35 mm fully automatic leaf-shutter camera with

built-in zoom tens and auto flash.

Film:

Auto film speed setting with 35 mm perforated

DX-coded film with ISO rating from 50 to 1600.

24 x 36 mm format.

Lens:

Pentax power zoom 35 - 70 mm f/3.5 — 6.7, 7

elements in 6 groups. Two type zooming

system: continuous zoom and step zoom.

Focusing system:

Pentax infrared active auto focusing. Range: 1 m

(3.3 ft) - infinity; 0.6 m (2 ft) - 1 m (3.3 ft) in MACRO.

Exposure control:

Programmed auto-exposure control. Range: EV 9-

16.5 in WIDE, EV11 - 16.5 in TELE and MACRO at

Auto mode (ISO 100). +1.5 EV exposure compensa-

tion provided.

Viewfinder:

Zoom finder with albada-bright frame. Magnification:

approx. 0.49X (WIDE) - 0.90X (TELE).

Shutter:

Programmed AE between-the-lens shutter with

speeds approx. 1/5 sec. - 1/250 sec. and Bulb (1/2

— 8 sec ). Multiple exposure function provided.

Self-timer:

10 second delay self-timer with LED indication.

Dual-frame self-timer mode provided.

Rash:

Built-in zoom flash. Recycle time: approx. 3 sec. with

fresh lithium batteries. Red-eye reduction flash mode.

Film loading/winding:

Auto film-loading.Two auto film-winding modes; sin-

gle frame mode and consecutive mode (1.2 sec./frame).

Rim rewinding:

Auto start at end of roll. Auto stop upon completion

of rewinding. Rewinding in mid-roll provided.

Power source:

Two 3V lithium batteries (CR-123A or DL-123A)

Battery life:

Approx. 125 rolls of 24-exposure film without flash.

Size & weight:

144 (W) x 77 (H) x 48.5 (D) mm (5.7" x 3" x 1.9").

395 grams (13.9 oz.) without battery.

DATE model

Imprinting mode:

"Year, Month and Day", "Day, Hour and Minute" or

blank.

Size & weight:

144 (W) X 77 (H) X 50.5 (D) mm (5.7" x 3" x 2"),

405 grams (14.3 oz.) without battery.

Pentax zoom 105-R date (1991)

SPECIFICATIONS

Type:

35 mm fully automatic leaf-shutter camera with built-in

zoom lens

Film:

35 mm perforated DX-coded film with ISO rating from

25 to 3200 |EV1 step).

24 x 36 mm format

Film loading:

Auto film loading Closing rear lid will automatically

wind film to first exposure

Film movement:

Auto winding: single-frame advance mode;

Consecutive Shooting mode (13 sec. interval between

shots)

Auto rewinding starts at end of roll Auto stop upon

completion of rewinding.

With auxiliary rewind button, film roll can also be

rewound in mid roll.

Frame number:

Automatic readout of successive frame numbers in

ascending order when shooting, and descending

order when rewinding.

Lens:

Pentax 38 to 105 mm. f 4 to f 7.8, power zoom lens

(with Macro). 11 elements in 9 groups, angle 59° to

23.5°

Focusing system:

Infrared active autofocusing with focus-lock.

Hange: 1.35 m (4.4 ft) - * (infinity): 0.75 m (2.5 ft) -

1.35 m (4.4 ft) in Macro; 0.45 m (1 5 ft| fixed in Super

Macro

Zooming:

2 modes: Continuous Zoom and Step Zoom

Shutter:

Programmed AE electronic shutter; approx. 1 250 to

13 sec.; Bulb (12 sec. to 60 min.|; Bulb-Timer

(1 to 60 sec.); electromagnetic release.

Self-timer.

Electronic red lamp indication. Approx 10-sec. delay.

Cancellation after activation is possible. Multi-frame

self-timer can take up to 5 frames.

Viewfinder:

Actual image zoom viewfinder. 87% field-of-view ratio.

Magnification 0 45X (38 mm position), 1.16X (105 mm

position, 1.09X (Macro). 0.97X (Super Macro)

Exposure:

Programmed auto-exposure, range (IS0100) in Auto

mode: EV9 ~ EV16.5 (38 mm), EV11.5 ~ EV16.5

(105 mm and Macro). Flash On and Flash Off: EV6 ~

16.5 (38 mm), EV8 ~ 16.5 (105 mm and Macro)

Exposure compensation: ±3EV (0.5EV steps)

Backlight compensation: +1.5EV compensation

Multi-exposure: Possible

Flash:

Built-in zoom flash with red-eye reduction flash mode.

Automatic low-luminance firing in Auto mode.

Charging time — Approx. 3 sec. (using fresh lithium

batteries at normal temperature).

Interval shooting:

Electronically controlled, started by pressing shutter

release button.

Power source:

Two 3V lithium batteries (equivalent to CR123A).

Size and weight:

143.5 (W) x 82.5 (H) x 66.5 (D) mm (5.6" x 3.2" x 2.6")

480 g (16.9 oz.) without batteries

Accessory: Strap

DATE model

Data mechanism:

Crystal quartz controlled; LCD with digital clock.

Imprinting mode:

"Year. Month and Day", ' Day. Hour and Minute' or

blank.

Size & weight:

143.5 (W) x 82.5 (H) x 68.5 (D) mm (5.6" x 3.2" x 2.7");

490 g (17.3 oz.) without batteries.

Pentax zoom 105-R (1991)

SPECIFICATIONS

Type:

35 mm fully automatic leaf-shutter camera with built-in

zoom lens

Film:

35 mm perforated DX-coded film with ISO rating from

25 to 3200 |EV1 step).

24 x 36 mm format

Film loading:

Auto film loading Closing rear lid will automatically

wind film to first exposure

Film movement:

Auto winding: single-frame advance mode;

Consecutive Shooting mode (13 sec. interval between

shots)

Auto rewinding starts at end of roll Auto stop upon

completion of rewinding.

With auxiliary rewind button, film roll can also be

rewound in mid roll.

Frame number:

Automatic readout of successive frame numbers in

ascending order when shooting, and descending

order when rewinding.

Lens:

Pentax 38 to 105 mm. f 4 to f 7.8, power zoom lens

(with Macro). 11 elements in 9 groups, angle 59° to

23.5°

Focusing system:

Infrared active autofocusing with focus-lock.

Hange: 1.35 m (4.4 ft) - * (infinity): 0.75 m (2.5 ft) -

1.35 m (4.4 ft) in Macro; 0.45 m (1 5 ft| fixed in Super

Macro

Zooming:

2 modes: Continuous Zoom and Step Zoom

Shutter:

Programmed AE electronic shutter; approx. 1 250 to

13 sec.; Bulb (12 sec. to 60 min.|; Bulb-Timer

(1 to 60 sec.); electromagnetic release.

Self-timer.

Electronic red lamp indication. Approx 10-sec. delay.

Cancellation after activation is possible. Multi-frame

self-timer can take up to 5 frames.

Viewfinder:

Actual image zoom viewfinder. 87% field-of-view ratio.

Magnification 0 45X (38 mm position), 1.16X (105 mm

position, 1.09X (Macro). 0.97X (Super Macro)

Exposure:

Programmed auto-exposure, range (IS0100) in Auto

mode: EV9 ~ EV16.5 (38 mm), EV11.5 ~ EV16.5

(105 mm and Macro). Flash On and Flash Off: EV6 ~

16.5 (38 mm), EV8 ~ 16.5 (105 mm and Macro)

Exposure compensation: ±3EV (0.5EV steps)

Backlight compensation: +1.5EV compensation

Multi-exposure: Possible

Flash:

Built-in zoom flash with red-eye reduction flash mode.

Automatic low-luminance firing in Auto mode.

Charging time — Approx. 3 sec. (using fresh lithium

batteries at normal temperature).

Interval shooting:

Electronically controlled, started by pressing shutter

release button.

Power source:

Two 3V lithium batteries (equivalent to CR123A).

Size and weight:

143.5 (W) x 82.5 (H) x 66.5 (D) mm (5.6" x 3.2" x 2.6")

480 g (16.9 oz.) without batteries

Accessory: Strap

DATE model

Data mechanism:

Crystal quartz controlled; LCD with digital clock.

Imprinting mode:

"Year. Month and Day", ' Day. Hour and Minute' or

blank.

Size & weight:

143.5 (W) x 82.5 (H) x 68.5 (D) mm (5.6" x 3.2" x 2.7");

490 g (17.3 oz.) without batteries.

Pentax PC-313 (1991)

SPECIFICATIONS

Type: 35mm auto-focus leaf-shutter camera with

built-in flash.

Film: 35mm perforated cartridge film.

24mm X 36mm format.

Film Speed Setting: Manual film speed setting at

ISO 100,200 and 400.

Film Winding/Rewinding: Automatic film winding

and rewinding.

Lens: Pentax 35mm f/4.5. 3 elements in 3 groups.

Focusing System: Active infrared automatic focusing

with focus-lock device. Focusing range: 1.2m

(3.9ft.) to infinity.

Shutter: Behind-the-lens shutter with fixed shutter

speed at 1/125 sec.

Flash: Built-in type with guide number 10 (ISO

100/m). Recycling time: approx. 6 seconds with

fresh alkaline batteries.

Power Source: Two 1.5V "AA" alkaline or manga-

nese batteries. (Ni-Cd batteries not usable.)

Battery Life: Approx. 40 rolls of 36-exposure film

without flash; approx. 8 rolls of 36-exposure film

with flash.

Dimensions: 117.5 (W) X 67 (H) X 47.5 (D) mm

(4.6" X 2.6' X 1.9").

Weight: 185g (6.5 oz.) without batteries.

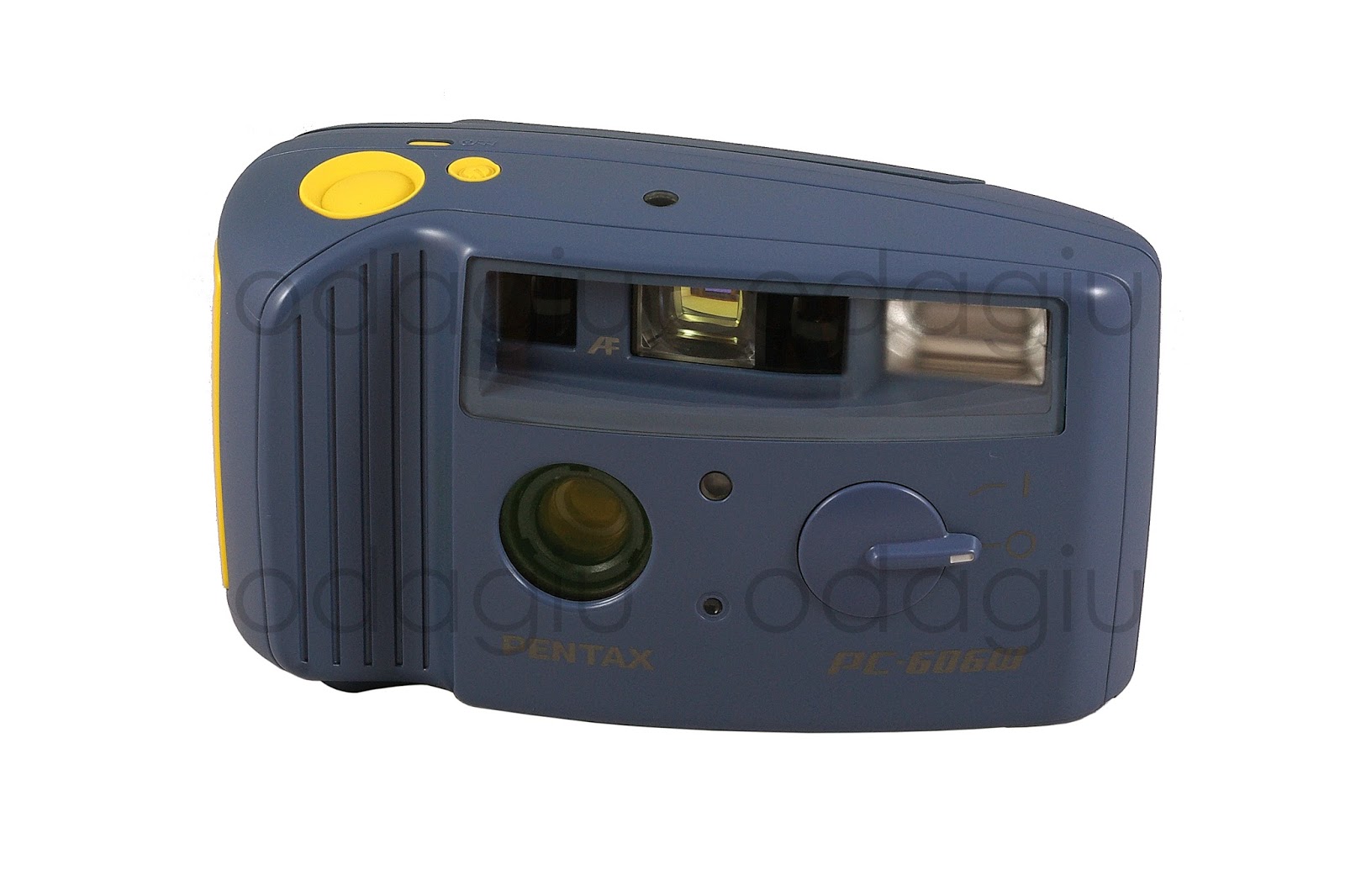

Pentax PC-606W (1991)

SPECIFICATIONS:

Type:

35 mm fully automatic lens-shutter camera

Weather-resistant Construction:

Weather-resistant with JIS protection Class 4 splashproof

construction (not adversely affected by water splashes from any

direction).

Film:

35 mm DX-coded film with ISO rating from 100 to 400; J135

cartridge. The camera film speed is automatically set to IS0100

when non-DX film is used.

Picture format:

24 mm x 36 mm

Film loading:

Auto film loading. Closing the back cover and pressing the

shutter release button will automatically wind film to first

exposure.

Film movement:

Auto winding: auto rewinding starts at end of roll. (Rewind speed:

approximately 22 sec for 24-exposure film.) Film can also be

rewound in mid roll.

Frame number:

Automatic readout of successive frame numbers in ascending

order when shooting and descending order when rewinding.

Lens:

Pentax 35 mm, f/4.5, 3 elements in 3 groups

Focusing system:

Infrared active autofocusing with focus-lock.

Range: approx. 1.0 m (3.3 feet) to infinity

Shutter:

Programmed AE electronic shutter.

Self-timer:

Electronic red lamp indication. Approx. 10-sec delay. Cancel-

lation after activation is possible.

Viewfinder:

Albada type bright frame finder

Exposure:

Programmed auto-exposure Range: EV 10 -15 (ISO 100)

Flash:

Built-in flash with automatic low-luminance firing.

Charging time:

Approx. 6 sec according to Pentax testing conditions.

Power source:

3 V lithium battery (CR123A or the equivalent)

Size and weight:

125 (W) x 71.5 (H) x 51 (D); approx. 200 g

Accessories:

Camera case

Date recording system:

Information is recorded on the reverse side of the film.

Date imprinting modes:

Push button to set unit to any of five modes; "Year/Mon/Day",

"Day/Hour/Min/", "- - -" (Blank), "Mon/Day/Year" or

"Day/Mon/Year".

Date imprinting power source:

3 V lithium battery (one CR2025 battery)

Size and weight:

125 (W) x 71.5 (H) x 55 (D); approx. 220 g

Pentax zoom 90-WR (1991)

SPECIFICATIONS:

Type: 35mm fully automatic leaf-shutter camera with built-in zoom lens and auto flash,
Weather-resistant with

IEC 529: Second characteristic numeral 5, protected against water jets.

Film: Auto film speed setting with 35mm perforated DX-coded film with ISO rating from 25 to 3200
(1 EV stepl.

Non-DX coded films are automatically set to IS025. 24x36mm format.

Film loading: Auto film loading. Closing the back cover will automatically wind the film to first
exposure.

Fflm winding: Auto film-winding: Two auto film-winding modes; single frame mode and consecutive
mode (approx.

1.6 sec /frame).

Film rewinding: Auto start at the end of roll. Auto stop upon completion of rewinding. Rewinding
time: approx

20 sec. with 24-exposure film. Rewinding in mid-roll provided.

Frame number: Automatic readout of successive frame numbers in ascending order when shooting,
and

descending order when rewinding.

Lens: Pentax power zoom 38-90mm f/3.5-7.5 8 elements in 7 groups. Angle of view: 59°-27°.

Focusing system: Pentax infrared active multi-beam autofocusing with focus lock, Switchable to
spot AF mode,

Range: 0.8m (2.6ft) - infinity;0.5m (1.6ftl-0.8m (2.6ft) in MACRO (magnification approx. 1/4.5X1,
Infinity-

landscape mode (focus is fixed to infinity).

Zooming: 2-button type.

Shutter: Programmed AE electronic shutter with speeds approx. 1/400 sec.-1/5sec. Bulb 1/2sec.-10min)
, Bulb-

timer Usee.-10 min). Electromagnetic release.

Self-timer: Electronic red lamp indication. Approx. 10-sec. delay with LEO indication. Cancellation
after activation

is possible. 2 consecutive shots provided in Dual-frame self-timer mode.

Viewfinder: Actual image zoom viewfinder: 82% field-of-view ratio. Magnification: approx. 0.47X
(38mm

WIOEl-1 01X(90mm TELE), 0.96X(Macro), Diopter.fixed at -1 diopter, AF frame (Spot AF,
Multi-beam AF, WIDE,

TELE), Picture frame. Macro frame, Green lamp lighting: in-focus signal. Green lamp blinking:
close-distance warning.

Red lamp lighting: Flash-ready status. Red lamp blinking: Flash being charged.

Exposure control: Programmed auto-exposure control. Range: EV9-16.5 at 38mm WIDE, EV11.5-16.5
at 90mm

TELE and MACRO in Auto or Daylight-Synchro mode (ISO 100), EV6-16.5 in 38mm WIDE,
EV8-16.5 in 90mm

TELE and MACRO mode in Slow-Shutter-Speed or Interval Shooting mode.

Multi-exposure: Multiple exposure function provided.

Exposure-meter switch: The exposure meter is turned on when the shutter release button is pressed
halfway.

Flash: Built-in zoom flash with red-eye reduction mode, Automatic low-luminance firing in Auto
mode, Flash-

ON = Daylight-Synchro/Slow-Shutter-Speed Synchro (up to 1/5 sec.), Flash-OFF = Flash override,
Bulb-

Synchro= 1/2sec.-10min.

Flash-effective range: 0.8-5m (38mm WIDE), 0.8-3.0m(60mm TELE), 0.5-0.8m(MACRO)
(IS0100 film used)

Recycle time: Approx. 3 sec. in Pentax testing conditions.

Interval shooting: Electronically controlled, started by pressing the shutter release button.

Remote controller: Infrared wireless remote controller. Step zooming at TELE, 60mm, WIDE,
Effective range:

5m from the front when projected from the camera's front; 0.7m from the back when projected
from the rear.

Power source for Remote Controller: One 3V lithium battery CR1620 (replaced by the
Pentax Service facility)

Size & weight for Remote Controller: 26(W)x61 (H)x8.8(D), 1 "x2.4"x0.3" 11g (0.4 oz.)

Power source: Two 3V lithium batteries (CR-123A or DL-123A)

Battery life: Approx. 30 rolls of 24 exposure film when 50% of shooting employs flash.

Battery exhaustion warning: (j I) appears on the LCD panel. Shutter is locked when the (tf I)
is blinking.

Data mechanism: Crystal quartz controlled; LCD with digital clock, auto calendar.

Imprinting mode: "Year, Month and Day", "Day, Hour and Minute" or blank.

Power source for data section: Lithium battery CR2025.

Siza & weight: 149(W)x76(H)x63.5(D)mm(5.99"x3"x2.5")

440 grams (15.5 oz.) without battery.

DATE model 149(W)x76(H)x66(D)mm(5.9"x3"x2.6'")

455 grams (16 oz.) without battery.

Pentax PC-100 (1992)

SPECIFICATIONS:

Type: 35mm leaf-shutter camera with built-in flash.

Film: 35mm perforated cartridge film.

24mm X 36mm format.

Film Speed Setting: Manual film speed setting at

ISO 100, 200 and 400.

Film Winding/Rewinding: Automatic film winding

and rewinding.

Lens: Pentax 35mm f/4.5. 3 elements in 3 groups.

Focusing System: Free focus. Focusing range: 1.5m

f4.9ft.}to infinity.

Shutter: Behind-the-lens shutter with fixed shutter

speed at 1/125 sec.

Flash: Built-in type with guide number 10 (ISO

100/m). Recycling time: approx. 6 seconds with

fresh alkaline batteries.

Power Source: Two 1,5V "AA" alkaline or manga-

nese batteries. (Ni-Cd batteries not usable.)

Dimensions: 122(W)X71(H)X47.5(D) mm

(4.8'X 2.8"X1.9').

Weight:-190g(6.8oz.) without batteries.

Pentax Gan Guang PG-201 (1992)

Pentax Espio black Date (1992)

SPECIFICATIONS

Type: 35mm fully automatic leaf-shutter camera

with built-in zoom lens and auto flash

Film: Auto film speed setting with 35mm perfo-

rated DX-coded film with ISO rating from 25

to 3200 (1 EV step). Non-DX coded films are

automatically set to IS025. 24x36mm format

Film loading: Auto film loading. Closing the back

cover will automatically wind the film to first

exposure

Film winding: Auto film-winding: Two auto film-

winding modes; single frame mode and con-

secutive mode (approx. 1.3 sec./frame).

Film rewinding: Auto start at the end of roll.

Auto stop upon completion of rewinding.

Rewinding time: approx 20 sec. with 24-ex-

posure film. Rewinding in mid-roll provided.

Frame number: Automatic readout of successive

frame numbers in ascending order when

shooting, and descending order when re-

winding.

Lens: Pentax power zoom 35-70mm f/4.3-8.0 8

elements in 7 groups, Angle of view: 63°-

34.5°

Focusing system: Pentax infrared active autofo-

cusing with focus lock, Range: 0.6m (2ft) - in-

finity, Infinity-landscape mode (focus is fixed

to infinity) Maximum magnification: 1/7.5X

Zooming: Electronic zoom

Shutter: Programmed AE electronic shutter with

speeds approx. 1/400 sec. 1/5sec. Bulb:1/

2sec.or slower ie, for as long as the shutter

release button is depressed, Electromagnetic

release

Self-timer: Electronic red lamp indication. Ap-

prox. 10-sec. delay with LED indication. Can-

cellation after activation is possible. 2 con-

secutive shots provided in Dual-frame self-

timer mode. Auto tele-wide self-timer mode

can take two consecutive pictures: the first at

the selected focal length; the second at the

wide-angle setting.

Viewfinder: Actual image zoom viewfinder: 83%

field-of-view ratio, Magnification: approx.

0.37X (35mm WIDE)-0.65X(70mm TELE),

Diopterfixed at -1 diopter, AF frame, Picture

frame, Close distance compensation frame,

Green lamp lighting on the right hand side of

the viewfinder: in-focus signal, Green lamp

blinking: close-distance warning. Red lamp

lighting on the left hand side of the viewfin-

der: Flash-ready status, Red lamp blinking:

Flash being charged

Exposure control: Programmed auto-exposure

control. Range: EV10-17 at 35mm WIDE,

EV11.5-17 at 70mm TELE in Auto or Daylight-

Synchro mode (ISO 100), EV6.5-17 in 35mm

WIDE, EV8-17 at 70mm TELE in Slow-Shut-

ter-Speed or Interval Shooting mode

Backlight compensation: +1.5EV

Multi-exposure: Multiple exposure function pro-

vided

Exposure-meter switch: The exposure meter is

turned on by half depression of the shutter

release button

Flash: Built-in zoom flash with red-eye reduction

mode. Automatic low-luminance firing in

Auto mode, Flash-ON=Daylight-Synchro/

Slow-Shutter-Speed Synchro (up to 1/5 sec.),

Flash-OFF=Flash override, Slow-Speed-Shut-

ter/Bulb, Bulb-Synchro=1/2 sec. or more

Flash effective range: 0.6-4.3m (35mm WIDE),

0.6-2.7m(70mm TELE), (IS0100 film used)

Flash recycling time: Approx. 5 sec. under the

Pentax testing conditions

Interval shooting: Electronically controlled,

started by depressing the shutter release

button: 3 and 60 minutes can be selected for

interval time

Power source: One 3V lithium battery (CR-123A

or DL-123A)

Battery life: Approx. 15 rolls of 24 exposure film

when 50% of shooting employs flash (under

the Pentax testing conditions)

Battery exhaustion warning: (Q ) appears on the

LCD panel. Shutter is locked when the (Q ) is

blinking

Data mechanism: Crystal quartz controlled; LCD

with digital clock, auto calendar

Imprinting mode: "Year, Month and Day", "Day,

Hour and Minute" or blank

Size & weight: 122(W) x 66(H) x 38(D)

(4.8"x2.6"x1.5")

235 grams, (8.30 oz.) without battery.

DATE model:

122(W)x66(H)x40.5(D)mm(4.8"x2.6"x1.6")

240 grams (8.5 oz.) without battery.

Pentax Espio black Date (1992)

SPECIFICATIONS

Type: 35mm fully automatic leaf-shutter camera

with built-in zoom lens and auto flash

Film: Auto film speed setting with 35mm perfo-

rated DX-coded film with ISO rating from 25

to 3200 (1 EV step). Non-DX coded films are

automatically set to IS025. 24x36mm format

Film loading: Auto film loading. Closing the back

cover will automatically wind the film to first

exposure

Film winding: Auto film-winding: Two auto film-

winding modes; single frame mode and con-

secutive mode (approx. 1.3 sec./frame).

Film rewinding: Auto start at the end of roll.

Auto stop upon completion of rewinding.

Rewinding time: approx 20 sec. with 24-ex-

posure film. Rewinding in mid-roll provided.

Frame number: Automatic readout of successive

frame numbers in ascending order when

shooting, and descending order when re-

winding.

Lens: Pentax power zoom 35-70mm f/4.3-8.0 8

elements in 7 groups, Angle of view: 63°-

34.5°

Focusing system: Pentax infrared active autofo-

cusing with focus lock, Range: 0.6m (2ft) - in-

finity, Infinity-landscape mode (focus is fixed

to infinity) Maximum magnification: 1/7.5X

Zooming: Electronic zoom

Shutter: Programmed AE electronic shutter with

speeds approx. 1/400 sec. 1/5sec. Bulb:1/

2sec.or slower ie, for as long as the shutter

release button is depressed, Electromagnetic

release

Self-timer: Electronic red lamp indication. Ap-

prox. 10-sec. delay with LED indication. Can-

cellation after activation is possible. 2 con-

secutive shots provided in Dual-frame self-

timer mode. Auto tele-wide self-timer mode

can take two consecutive pictures: the first at

the selected focal length; the second at the

wide-angle setting.

Viewfinder: Actual image zoom viewfinder: 83%

field-of-view ratio, Magnification: approx.

0.37X (35mm WIDE)-0.65X(70mm TELE),

Diopterfixed at -1 diopter, AF frame, Picture

frame, Close distance compensation frame,

Green lamp lighting on the right hand side of

the viewfinder: in-focus signal, Green lamp

blinking: close-distance warning. Red lamp

lighting on the left hand side of the viewfin-

der: Flash-ready status, Red lamp blinking:

Flash being charged

Exposure control: Programmed auto-exposure

control. Range: EV10-17 at 35mm WIDE,

EV11.5-17 at 70mm TELE in Auto or Daylight-

Synchro mode (ISO 100), EV6.5-17 in 35mm

WIDE, EV8-17 at 70mm TELE in Slow-Shut-

ter-Speed or Interval Shooting mode

Backlight compensation: +1.5EV

Multi-exposure: Multiple exposure function pro-

vided

Exposure-meter switch: The exposure meter is

turned on by half depression of the shutter

release button

Flash: Built-in zoom flash with red-eye reduction

mode. Automatic low-luminance firing in

Auto mode, Flash-ON=Daylight-Synchro/

Slow-Shutter-Speed Synchro (up to 1/5 sec.),

Flash-OFF=Flash override, Slow-Speed-Shut-

ter/Bulb, Bulb-Synchro=1/2 sec. or more

Flash effective range: 0.6-4.3m (35mm WIDE),

0.6-2.7m(70mm TELE), (IS0100 film used)

Flash recycling time: Approx. 5 sec. under the

Pentax testing conditions

Interval shooting: Electronically controlled,

started by depressing the shutter release

button: 3 and 60 minutes can be selected for

interval time

Power source: One 3V lithium battery (CR-123A

or DL-123A)

Battery life: Approx. 15 rolls of 24 exposure film

when 50% of shooting employs flash (under

the Pentax testing conditions)

Battery exhaustion warning: (Q ) appears on the

LCD panel. Shutter is locked when the (Q ) is

blinking

Data mechanism: Crystal quartz controlled; LCD

with digital clock, auto calendar

Imprinting mode: "Year, Month and Day", "Day,

Hour and Minute" or blank

Size & weight: 122(W) x 66(H) x 38(D)

(4.8"x2.6"x1.5")

235 grams, (8.30 oz.) without battery.

DATE model:

122(W)x66(H)x40.5(D)mm(4.8"x2.6"x1.6")

240 grams (8.5 oz.) without battery.

Pentax Espio silver (1992)

SPECIFICATIONS

Type: 35mm fully automatic leaf-shutter camera

with built-in zoom lens and auto flash

Film: Auto film speed setting with 35mm perfo-

rated DX-coded film with ISO rating from 25

to 3200 (1 EV step). Non-DX coded films are

automatically set to IS025. 24x36mm format

Film loading: Auto film loading. Closing the back

cover will automatically wind the film to first

exposure

Film winding: Auto film-winding: Two auto film-

winding modes; single frame mode and con-

secutive mode (approx. 1.3 sec./frame).

Film rewinding: Auto start at the end of roll.

Auto stop upon completion of rewinding.

Rewinding time: approx 20 sec. with 24-ex-

posure film. Rewinding in mid-roll provided.

Frame number: Automatic readout of successive

frame numbers in ascending order when

shooting, and descending order when re-

winding.

Lens: Pentax power zoom 35-70mm f/4.3-8.0 8

elements in 7 groups, Angle of view: 63°-

34.5°

Focusing system: Pentax infrared active autofo-

cusing with focus lock, Range: 0.6m (2ft) - in-

finity, Infinity-landscape mode (focus is fixed

to infinity) Maximum magnification: 1/7.5X

Zooming: Electronic zoom

Shutter: Programmed AE electronic shutter with

speeds approx. 1/400 sec. 1/5sec. Bulb:1/

2sec.or slower ie, for as long as the shutter

release button is depressed, Electromagnetic

release

Self-timer: Electronic red lamp indication. Ap-

prox. 10-sec. delay with LED indication. Can-

cellation after activation is possible. 2 con-

secutive shots provided in Dual-frame self-

timer mode. Auto tele-wide self-timer mode

can take two consecutive pictures: the first at

the selected focal length; the second at the

wide-angle setting.

Viewfinder: Actual image zoom viewfinder: 83%

field-of-view ratio, Magnification: approx.

0.37X (35mm WIDE)-0.65X(70mm TELE),

Diopterfixed at -1 diopter, AF frame, Picture

frame, Close distance compensation frame,

Green lamp lighting on the right hand side of

the viewfinder: in-focus signal, Green lamp

blinking: close-distance warning. Red lamp

lighting on the left hand side of the viewfin-

der: Flash-ready status, Red lamp blinking:

Flash being charged

Exposure control: Programmed auto-exposure

control. Range: EV10-17 at 35mm WIDE,

EV11.5-17 at 70mm TELE in Auto or Daylight-

Synchro mode (ISO 100), EV6.5-17 in 35mm

WIDE, EV8-17 at 70mm TELE in Slow-Shut-

ter-Speed or Interval Shooting mode

Backlight compensation: +1.5EV

Multi-exposure: Multiple exposure function pro-

vided

Exposure-meter switch: The exposure meter is

turned on by half depression of the shutter

release button

Flash: Built-in zoom flash with red-eye reduction

mode. Automatic low-luminance firing in

Auto mode, Flash-ON=Daylight-Synchro/

Slow-Shutter-Speed Synchro (up to 1/5 sec.),

Flash-OFF=Flash override, Slow-Speed-Shut-

ter/Bulb, Bulb-Synchro=1/2 sec. or more

Flash effective range: 0.6-4.3m (35mm WIDE),

0.6-2.7m(70mm TELE), (IS0100 film used)

Flash recycling time: Approx. 5 sec. under the

Pentax testing conditions

Interval shooting: Electronically controlled,

started by depressing the shutter release

button: 3 and 60 minutes can be selected for

interval time

Power source: One 3V lithium battery (CR-123A

or DL-123A)

Battery life: Approx. 15 rolls of 24 exposure film

when 50% of shooting employs flash (under

the Pentax testing conditions)

Battery exhaustion warning: (Q ) appears on the

LCD panel. Shutter is locked when the (Q ) is

blinking

Data mechanism: Crystal quartz controlled; LCD

with digital clock, auto calendar

Imprinting mode: "Year, Month and Day", "Day,

Hour and Minute" or blank

Size & weight: 122(W) x 66(H) x 38(D)

(4.8"x2.6"x1.5")

235 grams, (8.30 oz.) without battery.

DATE model:

122(W)x66(H)x40.5(D)mm(4.8"x2.6"x1.6")

240 grams (8.5 oz.) without battery.

Pentax zoom 280-P (1992)

SPECIFICATIONS

Type: 35mm fully automatic leaf-shutter camera

with built-in zoom lens and auto flash

Film: Auto film speed setting with 35mm perforated

DX-coded film with ISO rating from 25 to 3200 II

EV step). Non-DX coded films are automatically

set to IS025.

Print size: 24x36mm format (13x36 in panoramic

format)

Film loading: Auto film loading. Closing the back

cover will automatically wind the film to first ex-

posure

Film winding: Auto film-winding: Two auto film-

winding modes; single frame mode and con-

secutive mode (approx. 1.6 sec./frame).

Film rewinding: Auto start at the end of roll. Auto

stop upon completion of rewinding. Rewinding

time: approx 20 sec. with 24-exposure film. Re-

winding in mid-roll provided.

Frame number: Automatic readout of successive

frame numbers in ascending order when shoot-

ing, and descending order when rewinding.

Lens: Pentax power zoom 28-80mm f/3.5-8.0 10 ele-

ments in 8 groups, Angle of view: 75°-30.5°

Focusing system: Pentax infrared active autofocus-

ing with focus lock (Switchable to Spot AF

mode) Range: 0.56m (1.8 ft) - infinity (Maximum

magnification approx. 1/6X), Infinity-landscape

mode (focus is fixed to infinity)

Zooming: 2 modes: continuous and step zoom

Shutter: Programmed AE electronic shutter with

speeds approx. 1/400 sec.-1/5sec. Bulb:1/2sec.-

10 min., Bulb-Timer: 1 sec.-IO min., Electromag-

netic release

Self-timer: Electronic red lamp indication. Approx.

10-sec. delay with LED indication. Cancellation

after activation is possible.

Viewfinder: Actual image zoom viewfinder: 82%

field-of-view ratio. Magnification: approx. 0.34X

(28mm WIDE)-0.87X(80mm TELE), Diopter.-3-

+1D, AF frame, Picture frame, Close distance

compensation frame, Panoramic format picture

area, Panoramic format close distance compen-

sation frame. Green lamp lighting on the right

hand side of the viewfinder: in-focus signal,

Green lamp blinking: close-distance warning,

Red lamp lighting on the right hand side of the

viewfinder: Flash-ready status, Red lamp blink-

ing: Flash being charged

Exposure control: Programmed auto-exposure con-

trol. Range: EV8.6-17 at 28mm WIDE, EV11.8-17

at 80mm TELE in Auto or Daylight-Synchro

mode (ISO 100), EV6.1-17 at 28mm WIDE, EV8.4-

17 at 80mm TELE in SLow-Shutter-Speed or In-

terval Shooting mode. Automatic exposure

compensation in a backlit situation

Multi-exposure: Multiple exposure function pro-

vided

Programmed-image-size tracking: Captures the

subject always at the waist-up image size (range

1.0-2.7 m)

Exposure compensation: +/- 3EV (0.5EV step)

Exposure-meter switch: The exposure meter is

turned on by half depression of the shutter re-

lease button

Flash: Built-in zoom flash with red-eye reduction

mode, Automatic flash emission in low-lumi-

nance or a backlit situation, Flash-ON=Daylight-

Synchro/Slow-Shutter-Speed Synchro (up to 1/5

sec.), Flash-OFF=Flash override, Bulb-Syn-

chro=1/2sec.-10 min.

Flash effective range: 0.56-5.0m(28mm WIDE), 0.56-

2.7m(80mm TELE), (IS0100 film used)

Flash recycling time: Approx. 3 sec. under Pentax

testing conditions

Interval shooting: Electronically controlled, started

by depressing the shutter release button (inter-

val time: 10 sec. - 60 min.)

Remote control: Infrared wireless remote control,

Step zooming at TELE (80mm), 50mm,

WIDE(28mm), Effective range: 5m from the front

when projected from the camera's front; 0.7m

from the back when projected from the rear,

Self-timer mode (3-second delay) can be set on

the camera.

Power source for remote control: One lithium bat-

tery CR1620 (replaced by the Pentax Service fa-

cility)

Size & weight for remote control:

21(W)x44.5(H)x8.5(D), 0.8"x1.8"x0.3", 7g (0.2 oz.)

Power source: Two 3V lithium batteries (CR-123A or

DL-123A)

Battery life: Approx. 30 rolls of 24 exposure film

when 50% of shooting uses flash (under Pentax

testing conditions)

Battery exhaustion warning: (CID) appears on the

LCD panel, Shutter is locked when the (CD) is

blinking

Data mechanism: Crystal quartz controlled; LCD

with digital clock, auto calendar

Imprinting mode: "Year, Month and Day", "Day,

Hour and Minute" or blank

Size & weight:

143(W)x81.5(H)x61.5(D) {5.6"x3.2"x2.r)

400 grams, (14.0 oz.Xwithout battery)

DATE model:

143(W)x81.5(H)x63.5(D)mm(5.6"x3.2"x2.5")

410 grams (14.5 oz.) without battery.

Pentax PC-300 (1993)

SPECIFICATIONS:

Type:

35mm lens-shutter camera

Film:

35 mm DX-coded film with ISO rating from 100 to 400; J135

cartridge. The camera film speed is automatically set to ISO 100

when non-DX film is used.

Picture format:

24 mm x 36 mm

Film loading:

Auto film loading. Closing the back cover and pressing the

shutter release button will automatically wind film to first

exposure.

Film movement:

Auto winding: auto rewinding starts at end of roll. (Rewind speed:

approximately 22 sec for 24-exposure film.) Film can also be

rewound in mid roll.

Frame number:

Automatic readout of successive frame numbers in ascending

order when shooting and descending order when rewinding.

Lens:

Pentax 35 mm, f/4.5, 3 elements in 3 groups

Focusing system:

Free focus. Focusing range : 1.5m (4.9ft.) to infinity.

Shutter:

Programmed AE electronic shutter.

Self-timer:

Electronic lamp indication. Approx. 10-sec delay.

Cancellation after activation is possible.

Viewfinder:

Albada type bright frame finder

Exposure:

Programmed auto-exposure Range: EV 10 - 15 (ISO 100)

Flash:

Built-in flash with automatic low-luminance firing.

Charging time:

Approx. 6 sec according to Pentax testing conditions.

Power source:

Two 1.5 V "AA" alkaline batteries. (Ni-Cd and maganese

batteries are not usable.)

Size and weight:

120 (W) X 70 (H) X 50 (D)mm; approx. 185g

Date recording system:

Information is recorded on the reverse side of the film.

Push button to set unit to any of five modes; "Year/Mon/Day",

Date imprinting modes:

"Day/Hour/Min/", "......" (Blank), "Mon/Day/Year" or

"Day/Mon/Year".

Date imprinting power source:

3 V lithium battery (one CR2025 battery)

Size and weight:

120 (W) X 70(H) X53 (D)mm ; approx. 200 g

Pentax PC-700 (1993)

SPECIFICATIONS:

Type:

35 mm fully automatic lens-shutter camera

Weather-resistant Construction:

Weather-resistant with JIS protection Class 4 splashproof

construction (not adversely affected by water splashes from any

direction).

Film:

35 mm DX-coded film with ISO rating from 100 to 400; J135

cartridge. The camera film speed is automatically set to ISO 100

when non-DX film is used.

Picture format:

24 mm x 36 mm

Film loading:

Auto film loading. Closing the back cover and pressing the

shutter release button will automatically wind film to first

exposure.

Film movement:

Auto winding: auto rewinding starts at end of roll. (Rewind speed:

approximately 22 sec for 24-exposure film.) Film can also be

rewound in mid roll.

Frame number:

Automatic readout of successive frame numbers in ascending

order when shooting and descending order when rewinding.

Lens:

Pentax 35 mm, f/4.5, 3 elements in 3 groups

Focusing system:

Infrared active autofocusing with focus-lock.

Range : approx. 1.2 m (3.9 feat) to infinity

Shutter:

Programmed AE electronic shutter.

Self-timer:

Electronic red lamp indication. Approx. 10-sec delay. Cancel-

lation after activation is possible.

Viewfinder:

Albada type bright frame finder

Exposure:

Programmed auto-exposure Range: EV 10 - 15 (ISO 100)

Flash:

Built-in flash with automatic low-luminance firing.

Charging time:

Approx. 6 sec according to Pentax testing conditions.

Power source:

3 V lithium battery (CR123A or the equivalent)

Size and weight:

125(W)X71.5(H)X51(D) mm ; approx. 205 g

Date recording system:

Information is recorded on the reverse side of the film.

Date imprinting modes:

Push button to set unit to any of five modes: "Year/Mon/Day"

"Day/Hour/Min/", "- - -" (Blank), "Mon/Day/Year" o

"Day/Mon/Year".

Date imprinting power source:

3 V lithium battery (one CR2025 battery)

Size and weight:

125(W) X71.5(H) X 55(D) mm : approx. 215 g

Pentax Espio W (1993)

SPECIFICATIONS:

Type: 35mm fully automatic leaf-shutter camera with built-in zoom lens and auto flash

Film: Auto film speed setting with 35mm perforated DX-coded film with ISO rating from 25 to

3200 (1 EV step). Non-DX coded films are automatically set to ISOZ5

Format: 24x36mm (13x36 in panoramic format)

Film loading: Auto film loading. Closing the back cover will automatically wind the film to first exposure

Film winding: Auto film-winding: single-frame advance mode.

Film rewinding: Auto start at the end of roll. Auto stop upon completion of reminding. Rewinding time:

approx 20 sec. with 24-exposure film. Rewinding in mid-roll provided.

Frame number: Automatic readout of successive frame numbers in ascending order when shooting, and

descending order when rew-inding.

Lens: Pentax power zoom 28-56mm f/4.5-8 6 elements in 5 groups, Angle of view: 75°-42°.

Focusing system: Pentax infrared active autofocusingwithfocuslock Range:0.5m( 1.6ft)- infinity (Maximum

magnification approx. 1/8X), Infinity-landscape mode (focus is fixed to infinity).Easy Pic.

mode (focus is fixed at 2.8m)

Zooming: Electronic zoom

Shutter: Programmed AE electronic shutter with speeds approx. 1/300 sec. - l/4sec. Bulb: l/2sec -

10 min., Electromagnetic release

Self-timer: Electronic red lamp indication. Approx. 10-sec. delay with LED indication. Cancellation

after activation is possible.

Viewfinder: Actual image zoom viewfinder: 84% field-of-view ratio. Magnification: approx. 0.34X

(28mm)-0.6X(56mm), Diopter: -2.5 - +0.5D, AF frame, Picture frame. Close distance

compensation frame. Panoramic format picture area, Green lamp lighting: in-focus signal.

Green lamp blinking: close-distance warning. Red lamp lighting: Flash-ready status. Red

lamp blinking: Flash being charged.

Exposure control: Programmed auto-exposure control. Range. EV9.5-17 at 28mm, EV12-17 at 56mm in Auto

or Daylight-Synchro mode (ISO 100), EV6.5-17 in 28mm. EV8.0-I7 at 56mm in Slow-

Shutter-Speed mode.

+ 1.5EV

Exposure-meter switch:

The exposure meter is turned on by half depression of the shutter release button

Flash:

Built-in zoom flash with red-eye reduction mode, Automatic flash emission in low-

Flash effective range:

luminanceorabacklight situation, Flash-ON=Daylight-Synchro/Slow-Shutter-SpeedSynchro

Flash recycling time:

(up to 1/4 sec.), Flash-OFF=Flash override, Bulb-Synchro=l/2sec.-10 min.

0.5-3.9m (28mm), 0.5-2.5m(56mm), (ISO 100 film used)

Approx. 5 sec. under Pentax testing conditions

Remote control:

Infrared wireless remote control, Step zooming at 56mm, 38mm and 28mm, Effective range:

5m from the front when projected from the camera's front.

Power source for Remote

One lithium battery CR1620 (replaced by the Pentax Service facility)

Size & weight for Remote

23.5(W)x68.5(L)x 15.0(D), 0.9"x2.7"x0.6", 15g (0.5oz.)

One 3V lithium battery (CR- 123A or the equivalent)

Battery life:

Approx. 15 rolls of 24 exposure film when 50% of shooting uses flash (under Pentax testing

conditions)

appears on the LCD panel, Shutter is locked when the (a) is blinking

Crystal quartz controlled; LCD with digital clock, auto calendar

"Year, Month and Day", "Day, Hour and Minute" or blank

125.5(W)x69.5(H)x40.0(D)(4.9"x2.7"xl.6") 265grams, (9.3oz.) (without battery)

125.5(W)x69.5(H)x43.0(D)(4.9"x2.7"x 1.7") 275grams, (9.7oz.) (without battery)

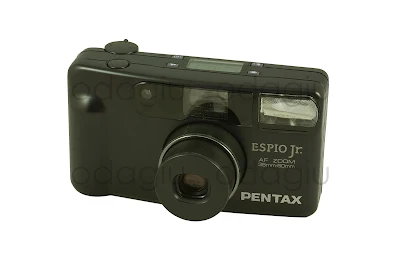

Pentax Espio Jr. (1993)

Pentax Espio 115 (1993)

SPECIFICATIONS

35mm full\ automatic leaf-shulter camera with huilt-in zoom lens and auto Hash

Auto film speed selling w nh 35mm perforated DX-coded film vwih ISC) rating from 25 to 3200 (I

l:V stopNon DX coded films are automatically set lo ISQ25

24x3ftmm 11in panoramic format)

Auto film loading. Closing the back cover v. ill automatically wmd the film to first exposure

Auto film-winding: fun auto film-winding modes; single frame mode and consecuiive mode

iapprox 1.7 sec /tramei

Auto start at the end ot roll. Aulo stop upon completion of rewinding. Rewinding time; approx 20

sec with 24-evposurc film Rewinding in mid-roll pros ided

Automatic readout ot successive frame numbers in ascending order when shooiing. and descending

ordei when rewinding

Pentax power /oom 38-1 15min f/4.0-8.5 V elements in ? groups. Angle of view: 54' -21.5'

Pentax infrared active autofocusing with focus lock range 0.65m 12.1ft! in wide

38mm, 0.85m :2.8ft: in tele 115mm-infinity 'Maximum magnification approx. 1

b,5Xi, 0.15m 11.5ft: in Super Macro :Magnification approx. 13) Infinity-landscape

mode ifocus is fixed to infinity

Electronic zoom

Programmed Ah electronic shutter w ith speeds approx. 1/400 sec. l/5sec. Bulb: 1/2sec -10 min..

Electromagnetic release

Electronic red tamp indication. Approx. 10-sec. delav with LED indication. Cancellation after

activation ts possible.

Actual image zoom v iew finder: 8.V ; held-ol-v iew ralio. Magnification: approx. 0.47X (38mm

WIDEi-1. ISXi I 15mm TELEi. Diopter-3- +1D. AE frame. Picture frame. Close distance compen-

sation frame. Panoramic formal picture area. Super Macro picture frame. Green lamp lighting: m-

focus signal, Green lamp blinking close-distance warning. Red lamp lighting: Flash-readv status.

Red lamp blinking: Mash being charged. I n fin it v -landscape lamp lighting Infinity-landscape mode

is in use.

Programmed auto-exposure control. Range EV9.5- |7al 38mm WIDE. HV I 1.5-17 at I 15mm THEE

in Auto or Daylight-Swichro mode (ISO HKb. EV6.0-11 m 38mm WIDE. EV8.II-17 at I 15mm

I EEE m Slow Shutter Speed mode. Automatic exposure compensation in a backlit situation

Multiple exposure function provided

The exposure meter is turned on by half depression of the shutter release button

Built-in zoom flash with red-eye reduction mode. Automatic flash emission in low-luminance or a

backlit situation, Flash-ON=Daylight-Synchro/Slow-Shutter-Speed Synchro (up to I /5 sec.), Flash-

OFF=Flash override, Bulb-Synchro=l/2sec.-10 min.

0.65-4.6m (38mm WIDE), 0.85-2.7m(l 15mm TELE), (ISO 100 film used)

Appro*. 5 sec. under Pentax testing conditions-

Infrared wireless remote control. Step zooming at TELE (115mm). 65mm. WIDE(38mm). Effective

range: 5m from the front when projected from the camera's front, Self-timer mode can be switched

between immediate-release and 3-second delay with the camera.

One lithium battery CR1620 (replaced by the Pentax Service facility)

23.5(W)x68.5(L)x 15.0(D)(0.9"x27"x0.6"). I5g (0.5oz.)

One 3V lithium battery (CR-123A or the equivalent)

Approx. 15 rolls of 24 exposure film when 50% of shooting uses flash (under Pentax testing

conditions)

(Q) appears on the LCD panel. Shutter is locked when the (J) is blinking

Crystal quartz controlled; LCD with digital clock, auto calendar

"Year, Month and Day", "Day. Hour and Minute" or blank

125(W)x70.0(H)x53.0(D)(4.9"x2.8"x2.1") 290erams. (10.2oz.)(without battery)

125 (W) x 70.0 (H) x 56.0 (D) (4.9"x2.8"x2.2")'. 300 grams. (I0.6oz.) (without battery)

Pentax PC-500 (1993)

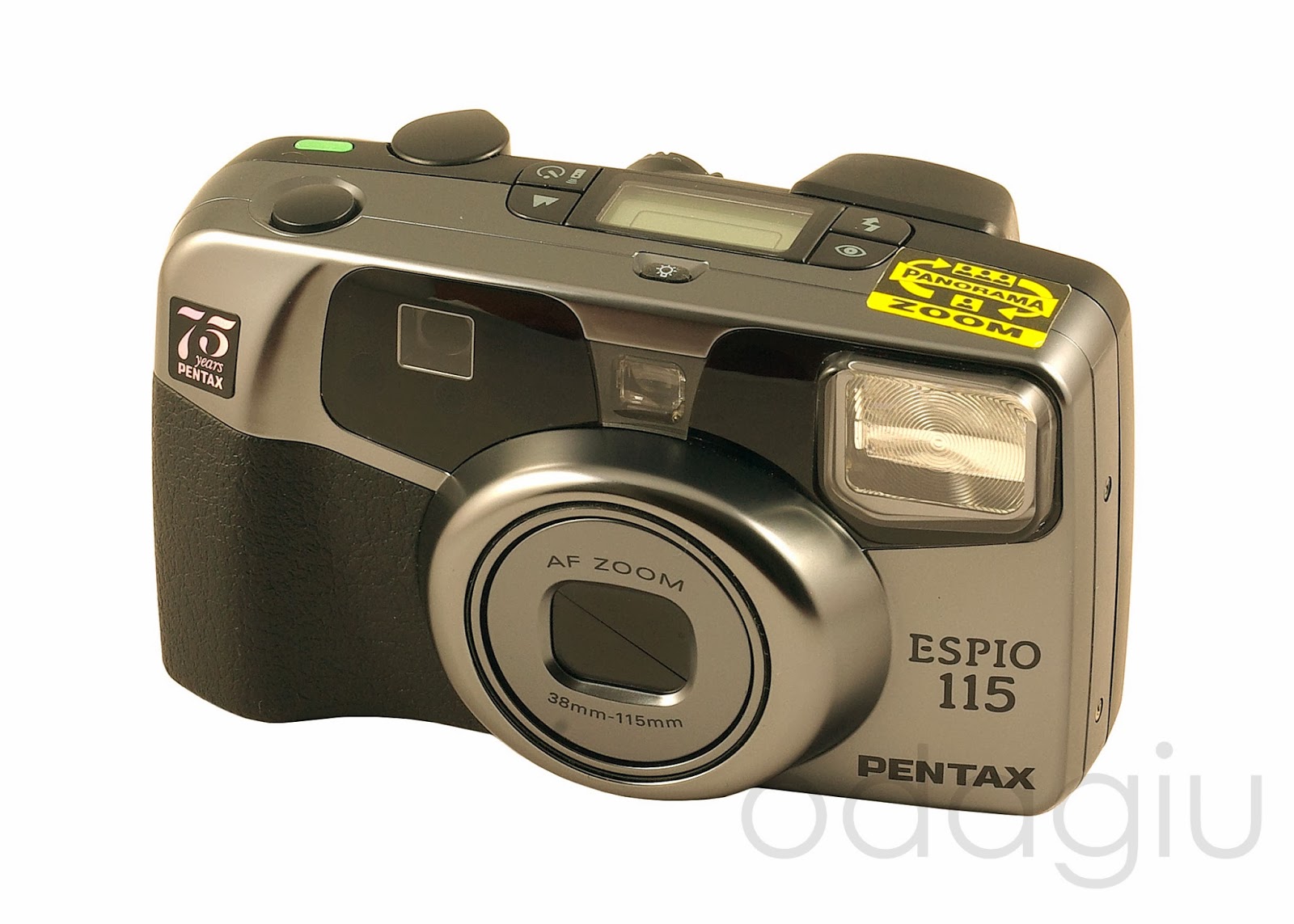

Pentax Espio 115 SE date (1994)

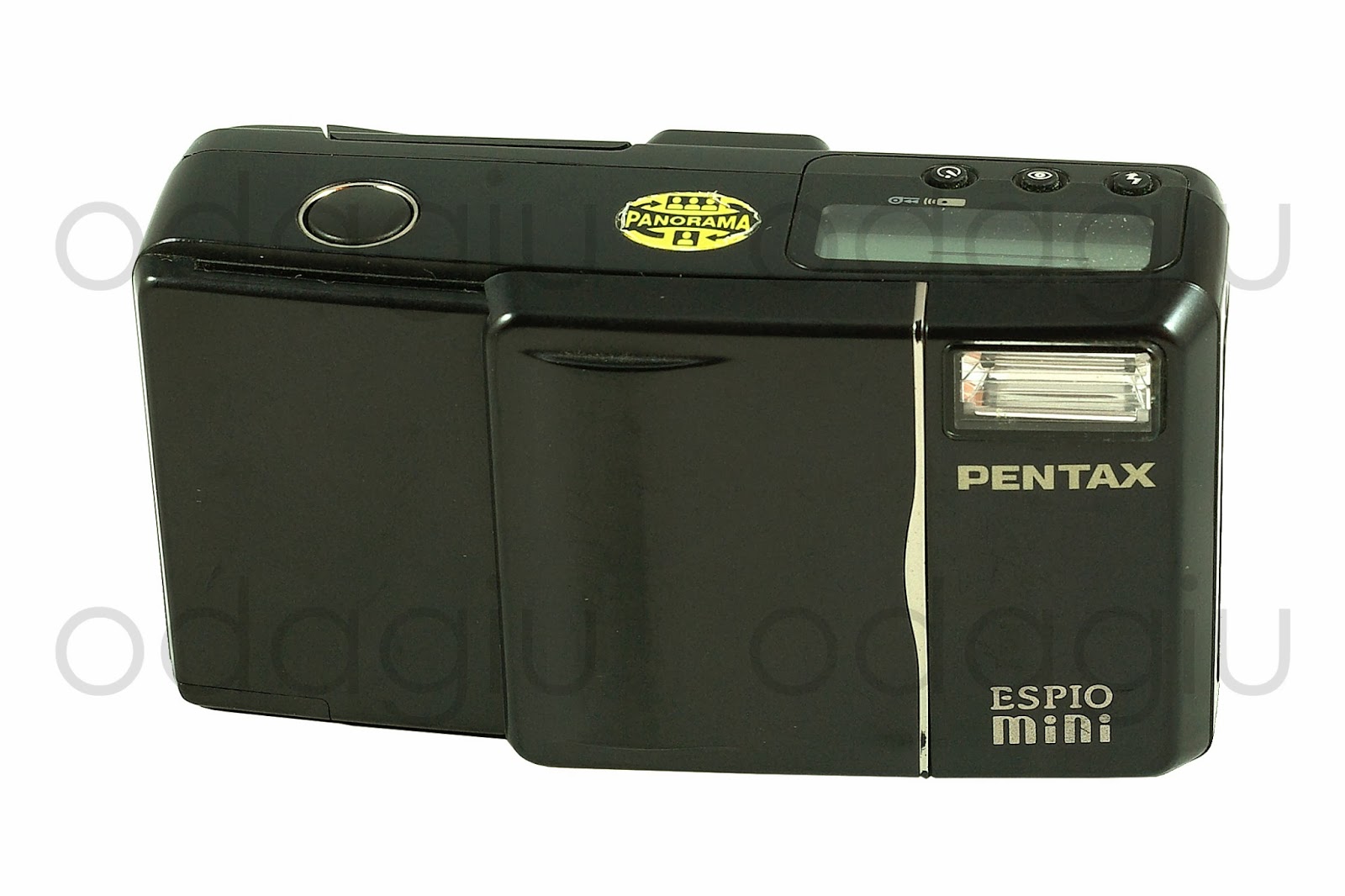

Pentax Espio Mini black (1994)

SPECIFICATIONS

35mm fully automatic leaf-shuttrr camera with built-in auto flash.

Auto film speed setting with 35mm jierfiuated l)X-codcd film with ISO

rating from 25 to 3200 (1EV step). Non-DX coded films are automatically

set to IS025.

24XS6mm (13X36 in panoramic format).

Auto film winding.

Auto film loading. Closing the hack will automatically wind the film to first

exposure.

Auto start at the end of roll. Auto stop upon completion of rewinding.

Rewinding time : approx 20 tec. with 24-expusure film. Rewinding in

mid-roll pms-ided.

Automatic readout of successive frame numbers in ascending order when

shooting, and descending order when rewinding.

Pentax 32mm f/3.5 3 elements in 3 groups, Angle of view : 68°.

Pent ax phase-matching autofocus system with focus lock. Range : 0.3m (I

ft) -infinity (Maximum magnification approx. I 7X).Spotbeam is emitted

in low light and/or hard-to-autofocus subject.

Programmed AF. electric shutter with speed approx. 1 400sec. -2 sec. Bulb

: 1/2 sec.-5 mm.. Electromagnetic release.

Electric red lamp indication. Approx. 10 sec. delay with I.F.D indication.

Cancellation after activation is |>ovsihlc.

Actual image viewfinder : 85% ficld-of-view ratio Magnification : approx.

0. 34X, Diopter : - ID, AF frame (blinking when subject i» too close and/or

hard-to-autofocus subject). Picture frame. Close distance compensation

frame. Panoramic format picture area. Green lamp lighting : in-focus signal.

Green lamp blinking : YVben subject is too close and/or hard-to-auiofocus

subject. Red lamp lighting : Flash-ready status. Red lamp blinking : Flash

being charged.

Programmed auto-exposure control. Range : F.V9.0-17 in Auto or Day-

light-Synchro mode (ISO 100), KV2.6-I7 in Slow-Shutler-Speed mode.

The exposure meter is turned uu by half depression <»f the shutter release

button.

Built-in auto flash with red-eye reduction mode. Automatic Hash emission in

low luminance or a backlight situation. Flash-ON Daylighl-Synchro/Slo-

w-Shutter-Spccd Synchro uip to 2 see.), Flash-OFF^- Flash override, Bulb-

Synchro I ■ 2 sec.-5 min.

0.3-3.7m (ISOIOO film used).

Approx. 3 sec. under Pentax testing conditinos.

Infrared wireless remote control, F.ITcciivc range : 5rn svlieu projected fiotii

the camera's front.

One lithium battery CRI620 (replaced lis the Pcnlux Service facility).

22.0 (VV) X50.0 (I.) X9.5 (D), 0.9* X 2.0' X 0.4", 9g (0.3o».) including bai-

wjr.

One lithium battery CRI23A or the equivalent.

Approx. 30 rolls of 24 exposure film when 50% of shoot ing uses flash (under

Pentax testing conditions).

Battery cxhuustion ( « ) appear* on the LCD panel. Shutter is locked when the ( «"» ) is

warning: blinking.

Data mechanism : Crystal quart2 controlled ; LCD with digital clock, auto calendar.

Imprint mode : "Year, Month and Day". "Day. Hour and Minute" or blank.

Imprinting method : From front of the film.

Size & weight : 107.0 (W) X 58.0 (H) x 35.0 (D). 4.2" x 2.3" x 1.4" 155g <5.4ox) without

Battery.

Pentax Espio Mini silver (1994)

SPECIFICATIONS

35mm fully automatic leaf-shuttrr camera with built-in auto flash.

Auto film speed setting with 35mm jierfiuated l)X-codcd film with ISO

rating from 25 to 3200 (1EV step). Non-DX coded films are automatically

set to IS025.

24XS6mm (13X36 in panoramic format).

Auto film winding.

Auto film loading. Closing the hack will automatically wind the film to first

exposure.

Auto start at the end of roll. Auto stop upon completion of rewinding.

Rewinding time : approx 20 tec. with 24-expusure film. Rewinding in

mid-roll pms-ided.

Automatic readout of successive frame numbers in ascending order when

shooting, and descending order when rewinding.

Pentax 32mm f/3.5 3 elements in 3 groups, Angle of view : 68°.

Pent ax phase-matching autofocus system with focus lock. Range : 0.3m (I

ft) -infinity (Maximum magnification approx. I 7X).Spotbeam is emitted

in low light and/or hard-to-autofocus subject.

Programmed AF. electric shutter with speed approx. 1 400sec. -2 sec. Bulb

: 1/2 sec.-5 mm.. Electromagnetic release.

Electric red lamp indication. Approx. 10 sec. delay with I.F.D indication.

Cancellation after activation is |>ovsihlc.

Actual image viewfinder : 85% ficld-of-view ratio Magnification : approx.

0. 34X, Diopter : - ID, AF frame (blinking when subject i» too close and/or

hard-to-autofocus subject). Picture frame. Close distance compensation

frame. Panoramic format picture area. Green lamp lighting : in-focus signal.

Green lamp blinking : YVben subject is too close and/or hard-to-auiofocus

subject. Red lamp lighting : Flash-ready status. Red lamp blinking : Flash

being charged.

Programmed auto-exposure control. Range : F.V9.0-17 in Auto or Day-

light-Synchro mode (ISO 100), KV2.6-I7 in Slow-Shutler-Speed mode.

The exposure meter is turned uu by half depression <»f the shutter release

button.

Built-in auto flash with red-eye reduction mode. Automatic Hash emission in

low luminance or a backlight situation. Flash-ON Daylighl-Synchro/Slo-

w-Shutter-Spccd Synchro uip to 2 see.), Flash-OFF^- Flash override, Bulb-

Synchro I ■ 2 sec.-5 min.

0.3-3.7m (ISOIOO film used).

Approx. 3 sec. under Pentax testing conditinos.

Infrared wireless remote control, F.ITcciivc range : 5rn svlieu projected fiotii

the camera's front.

One lithium battery CRI620 (replaced lis the Pcnlux Service facility).

22.0 (VV) X50.0 (I.) X9.5 (D), 0.9* X 2.0' X 0.4", 9g (0.3o».) including bai-

wjr.

One lithium battery CRI23A or the equivalent.

Approx. 30 rolls of 24 exposure film when 50% of shoot ing uses flash (under

Pentax testing conditions).

Battery cxhuustion ( « ) appear* on the LCD panel. Shutter is locked when the ( «"» ) is

warning: blinking.

Data mechanism : Crystal quart2 controlled ; LCD with digital clock, auto calendar.

Imprint mode : "Year, Month and Day". "Day. Hour and Minute" or blank.

Imprinting method : From front of the film.

Size & weight : 107.0 (W) X 58.0 (H) x 35.0 (D). 4.2" x 2.3" x 1.4" 155g <5.4ox) without

Battery.

Pentax PC-30 (1994)

SPECIFICATIONS:

Type: 35mm lens-shutter camera

Film: 35 mm DX-coded film wild ISO rating from 100 lo 400: J135 cartridge.
The camera film speed is automatically set to ISO 100 when non-OX film is used.

Picture format: 24 mm * 36 mm

Film loading: Auto film loading. Closing the back cover and pressing the
shutter release button will automatically wind lilm to first exposure.

Film transport: Auto film winding and rewinding. Rewinding stops upon
completion.

Frame number : Automatic readout of successive frame numbers in
ascending order when shooting and descending order when rewinding.

Lens: Pentax 35 mm. f/4.5, 3 elements in 3 groups

Focusing system: Free focus. Focusing range : 1.5m (4.9ft.1 to infinity

Shutter: . Behind-the-lens shutter with fixed shutter speed at 1/125 sec.

Self-timer: Electronic lamp indication. Approx. 10-sec delay. Cancellation
after activation is possible.

Viewfinder: Albada type bright frame finder

Exposure control: Auto-aperture control f/4.5 Automatic low-luminance
firing f/8 IS0100/200 f/16 IS0400

Flash: Built-in flash with automatic low-luminance firing.

Charging time: Approx. 6 sec according to Pentax testing conditions.

Power source: Two 1.5 V "AA" alkaline batteries. (Ni-Cd and maganese
batteries are not usable.)

Size and weight: 126(W) x 73(H) x49(D)mm ; approx. 175g without batteries.

Date recording system: Information is recorded on the reverse side of the film.

Date imprinting modes: Push button to set unit to any o1 live modes:
"Year/Mon/Day". "Day/Hour/Min/". "......" (Blank). "Mon/Day/Year" or "Day/Mon/Year"

Date imprinting power source: 3 V lithium battery (one CR2025 battery)

Size and weight: 126(W) x73(H) xS2(D)mm : approx. 195g without batteries.

Pentax PC-50 date (1994)

SPECIFICATIONS:

Type:

35 mm fully automatic lens-shutter camera

Film:

35 mm DX-coded film with ISO rating from 100 to 400; J135

cartridge. The camera film speed is automatically set to IS0100

when non-DX film is used.

Picture format:

24 mm x 36 mm

Film loading:

Auto film loading. Closing the back cover and pressing the

shutter release button will automatically wind film to first

exposure.

Film transport:

Auto film winding and rewinding. Rewinding stops upon

completion.

Frame number:

Automatic readout of successive frame numbers in ascending

order when shooting and descending order when rewinding.

Lens:

Pentax 35 mm, f/4.5, 3 elements in 3 groups

Focusing system:

Infrared active autofocusing with focus-lock. I

Range : approx. 1.2 m (3.9 ft.) to infinity

Shutter:

Behind-the-lens shutter with fixed shutter speed at 1/125

sec.

Self-timer:

Electronic lamp indication. Approx. 10-sec delay.

Cancellation after activation is possible.

Viewfinder:

Aibada type bright frame tinder

Exposure control:

Auto-aperture control

f/4.5 Automatic low-luminance firing

f/8 IS0100/200

f/16 IS0400

Flash:

Built-in flash with automatic low-luminance firing.

Charging time:

Approx. 6 sec according to Pentax testing conditions.

Power source:

Two 1.5 V "AA" alkaline batteries. (Ni-Cd and maganese

batteries are not usable.)

Size and weight:

126 (W) X 73 (H) x 49(D) mm;approx. 190g without batteries.

Date recording system: Information is recorded on the reverse side of the film.

Date imprinting modes: Push button to set unit to any of five modes; "Year/Mon/Day",

"Day/Hour/Min/", - (Blank), "Mon/Day/Year" or

"Day/Mon/Year".

Date imprinting power source: 3 V lithium battery (one CR2025 battery)

Size and weight: 126(W) X73(H) x52(D)mm; approx.200g without batteries.

Pentax Espio 70 (1994)

SPECIFICATIONS:

Type: 35mm fully automatic leaf-shutter camera

with built-in zoom lens and auto flash

Film: Auto film speed setting with 35mm perfo-

rated DX-coded film with ISO rating from 25

to 3200 (1 EV step). Non-DX coded films are

automatically set to IS025. 24x36mm format

Film loading: Auto film loading. Closing the back

cover will automatically wind the film to first

exposure

Film winding: Auto film-winding: Two auto film-

winding modes; single frame mode and con-

secutive mode (approx. 1.3 sec./frame).

Film rewinding: Auto start at the end of roll.

Auto stop upon completion of rewinding.

Rewinding time: approx 20 sec. with 24-ex-

posure film. Rewinding in mid-roll provided.

Frame number: Automatic readout of successive

frame numbers in ascending order when

shooting, and descending order when re-

winding.

Lens: Pentax power zoom 35-70mm f/4.3-8.0 8

elements in 7 groups, Angle of view: 63°-

34.5°

Focusing system: Pentax infrared active autofo-

cusing with focus lock, Range: 0.6m (2ft) - in-

finity, Infinity-landscape mode (focus is fixed

to infinity) Maximum magnification: 1/7.5X

Zooming: Electronic zoom

Shutter: Programmed AE electronic shutter with

speeds approx. 1/400 sec. 1/5sec. Bulb:1/

2sec.or slower ie, for as long as the shutter

release button is depressed, Electromagnetic

release

Self-timer: Electronic red lamp indication. Ap-

prox. 10-sec. delay with LED indication. Can-

cellation after activation is possible. 2 con-

secutive shots provided in Dual-frame self-

timer mode. Auto tele-wide self-timer mode

can take two consecutive pictures: the first at

the selected focal length; the second at the

wide-angle setting.

Viewfinder: Actual image zoom viewfinder: 83%

field-of-view ratio, Magnification: approx.

0.37X (35mm WIDE)-0.65X(70mm TELE),

Diopter:fixed at -1 diopter, AF frame, Picture

frame. Close distance compensation frame,

Green lamp lighting on the right hand side of

the viewfinder: in-focus signal, Green lamp

blinking: close-distance warning, Red lamp

lighting on the left hand side of the viewfin-

der: Flash-ready status. Red lamp blinking:

Flash being charged

Exposure control: Programmed auto-exposure

control. Range: EV10-17 at 35mm WIDE,

EV11.5-17 at 70mm TELE in Auto or Daylight-

Synchro mode (ISO 100), EV6.5-17 in 35mm

WIDE, EV8-17 at 70mm TELE in Slow-Shut-

ter-Speed or Interval Shooting mode

Backlight compensation: +1.5EV

Multi-exposure: Multiple exposure function pro-

vided

Exposure-meter switch: The exposure meter is

turned on by half depression of the shutter

release button

Flash: Built-in zoom flash with red-eye reduction

mode, Automatic low-luminance firing in

Auto mode, Flash-ON=Daylight-Synchro/

Slow-Shutter-Speed Synchro (up to 1/5 sec.),

Flash-OFF=Flash override, Slow-Speed-Shut-

ter/Bulb, Bulb-Synchro=1/2 sec. or more

Flash effective range: 0.6-4.3m (35mm WIDE),

0.6-2.7m(70mm TELE), (IS0100 film used)

Flash recycling time: Approx. 5 sec. under the

Pentax testing conditions

Interval shooting: Electronically controlled,

started by depressing the shutter release

button: 3 and 60 minutes can be selected for

interval time

Power source: One 3V lithium battery (CR-123A

or DL-123A)

Battery life: Approx. 15 rolls of 24 exposure film

when 50% of shooting employs flash (under

the Pentax testing conditions)

Battery exhaustion warning: (Q ) appears on the

LCD panel. Shutter is locked when the (J > is

blinking

Data mechanism: Crystal quartz controlled; LCD

with digital clock, auto calendar

Imprinting mode: "Year, Month and Day", "Day,

Hour and Minute" or blank

Size & weight: 122(W) X 66(H) X 40(D)

(4.8" X2.6" X 1.6")

235 grams, (8.30 oz.) without battery.

DATE model:

122 (W)X 66 (H) X 42.5 (D) mm (4.8" X 2.6" X1.7")

245 grams (8.6oz.) without battery.

Pentax Espio 80 (1994)

SPECIFICATIONS

Type:

35mm fully automatic leaf-shutter camera with built-in zoom lens and auto flash.

Auto film speed setting with 35mm perforated DX-coded film with ISO rating from 25

to 3200 : 1FV step:. Non-DX coded films are automatically set to IS025.

Film:

24x36mm ' 13x36mm in panoramic format'

Film loading:

Auto film loading. Closing the back cover will automatically wind the film to first ex-

posure.

Format:

Auto film-winding: single-frame advance mode.

Film rewinding:

Autostart at the end of roll. Auto stop upon completion of rewinding. Rewinding

time:approx 20 sec. with 24-exposure film. Rewinding in mid-roll provided.

Frame number:

Automatic readout of successive frame numbers in ascending order w hen shooting, and

descending order when rewinding.

Lens:

Pentax power zoom 35-80mm f 4.1-8.7 7 elements in 6 groups.Angle of vjew :63 -

30.5

Focusing system:

Pentax phase-matching passive multi ¹ 5-points autofocus system, focus lock is pro-

vided. Range:0.5m: 1.6ft -infinity¹ Maximum magnification approx. 5.4X . focus

aid illuminator is automatically emitted in low light and or hard-to-autofocus subj.

Zooming:

Electronic zoom

Shutter:

Programmed All electronic shutter with speed approx I 4(X) to 2 sec. Bulb:12s.

5min, Hlectromagnetic release.

Self-timer:

Fleet ronic veil lamp indication. Approx. 10s delay with LCD indication.

Cancellation after activation is possible.

Viewfinden

Actual image zcx>m viewnnder,X^uo field-of-view ratio,Magnif. O.42X 35mm

WIDE- - 0.85X' 80mm TELF). Diopter 3 to • I P. Al^; frame. Picture frame. Close

distance compensation frame for standard format. Panoramic format picture area.

Green lamp lighting:in-focus signal. Cireen lamp blinking:when subject is loo close

and or hard-to-autofocus subject. Red lamp lightmg:Flash-read> status. Red lamp

bhnking:Flash being charged.

Exposure control:

Programmed auto-exposure control with two divided light receiving sensor

Range-.FV9.5-FV 17 at 35mm WIDF. FV12-FVI7.5 at M>mm TFI F in Auto or

Daylight-Synchro mode i ISC) 100FV3.5-FVI7 at 35mm WIDE-.FV5 5-FVI7.5 at

80mm TFLF in Slow-Shutter-Speed mode. Automatic exposure compensation in a

backlit situation.

Exposure-meter switch:

The exposure meter is turned on by half depression of the shutter release button.

Built-in flash with red-eye reduction mode, Automatic flash emission in low-luminance

or a backlit situation, Flash ON = Day-ligbt-Synchro/Slow-Shutter- Speed Synchro

(up to 2 sec.),FIash-OFF = Flash override, Bulb-Synchro = 1 /2 sec.-5min.

0.5-4.5m (35mm WIDE),0.5-2.2m (80mm TELE) (ISOIOO film used)

Approx.5 sec. under Pentax testing conditions

Infrared wireless remote control, 3-second delay shutter release, Effective range:Closer

than 5m from the front when projected from the camera's front.

Battery life:

One lithium battery CR1620 (replaced by the Pentax Service facility)

22.0(W)x50.0(L)x9.5(D)mm (0.9* x2.0" x0.4"), 9g(0.3oz.) including battery.

Approx.15 rolls of 24 exposure film when 50% of shooting uses flash (under Pentax

testing conditions) _

Date mechanism:

( Q) appears on the LCD panel, Shutter is locked when ( fl) is blinking.

Crystal quartz controlled; LCD with digital clock, anto calender up to 2030. Possible

to imprint both standard and panoramic format frames.

Imprinting mode:

"Year, Month and Day","Day, Hour and Minutes", "—- blank", "Month, Day and

Year" or "Day, Month and Year".

Size & Weight:

124.0( W)x65.0(H)x33.5(D)mm (4.9" x2.6" xl.3" ) 210g (7.4oz) without battery

Pentax Espio 110 (1994)

SPECIFICATIONS

Type:

35mm fully automatic leaf-shutter camera with built-in zoom lens and auto flash

Auto film speed setting with 35mm perforated DX-coded film with ISO rating from 25 to 3200 < 1

EV step). Non-DX coded films are automatically set to IS025

24x36mm

Auto film loading. Closing the back cover will automatically wind the film to first exposure

Auto film-winding: Two auto film-winding modes; single frame mode and consecutive mode

(approx. 1.7 sec./frame).

Auto start at the end of roll. Auto stop upon completion of rewinding. Rewinding time: approx 20

sec. with 24-exposure film. Rewinding in mid-roll provided.

Automatic readout of successive frame numbers in ascending order when shooting, and descending

order when rewinding.

Pentax power zoom 38-110mm f/4.0-8.2 9 elements in 7 groups. Angle of view: 59°-22.5°

Pentax infrared active autofocusing with focus lock range 0.65m (2.1ft) in wide

38mm, 0.85m (2.8ft) in tele HOmm-infinity (Maximum magnification approx. 1/

7X) 0.45m (1.5ft) in Super Macro (Magnification approx. 1/3) Infinity-landscape

mode (focus is fixed to infinity)

Electronic zoom

Programmed AE electronic shutter with speeds approx. 1/400 sec.- l/5sec. Bulb: l/2sec.-10 min..

Electromagnetic release

Electronic red lamp indication. Approx. 10-sec. delay with LED indication. Cancellation after

activation is possible.

Actual image zoom viewfinder: 83% field-of-view ratio, Magnification: approx. 0.47X (38mm

WIDE)-U2X(110mm TELE), Diopter:-3- +1D.AF frame, Picture frame. Close distance compen-

sation frame. Super Macro picture frame. Green lamp lighting: in- focus signal, Green lamp blink-

ing: close-distance warning. Red lamp lighting: Flash-ready status. Red lamp blinking: Flash being

charged. Infinity-landscape lamp lighting: Infinity-landscape mode is in use.

Programmed auto-exposure control. Range: EV9.5-17 at 38mm WIDE, EV 11.5-17 at 1 lOmmTELE

in Auto or Daylight-Synchro mode (ISO 100). EV6.0-17 in 38mm WIDE.'EV8.0-17 at 110mm

TELE in Slow-Shutter-Speed mode, Automatic exposure compensation in a backlit situation

Multiple exposure function provided

The exposure meter is turned on by half depression of the shutter release button

Built-in zoom flash with red-eye reduction mode, Automatic flash emission in low-luminance or a

backlit situation, Flash-ON=Daylight-Synchro/Slow-Shutter-Speed Synchro (up to 1/5 sec.), Flasb-

OFF=Flash override, Bulb-Synchro=l/2sec.-10 min.

0.65-4.6m (38mm WIDE), 0.85-2.7m(I10mm TELE),(ISO 100 film used)

Approx. 5 sec. under Pentax testing conditions

One 3V lithium battery (CR-123A or the equivalent)

Approx. 15 rolls of 24 exposure film when 50% of shooting uses flash (under Pentax testing

conditions)

(Q) appears on the LCD panel, Shutter is locked when the (Q) is blinking

Crystal quartz controlled; LCD with digital clock, auto calendar

"Year, Month and Day", "Day, Hour and Minute" or blank

125(W)x70.0(H)x53.0(D)(4.9"x2.8"x2.1") 290grams, (10.2oz.)(without battery)

125 (W) x 70.0 (H) x 56.0 (D) (4.9"x2.8"x2.2"), 300 grams, (I0.6oz.) (without battery)

Pentax Espio 120 black (1994)

SPECIFICATIONS

35mm kills automatic leaf-shutter camera with huill-in /mini lens and auto flasn

Auto film speed setting with 35mm peiforated DX-coded

coded films are automatically set to ISO25

24x36mm 13 ' 36 in panoramic format:

Aulo film loading. Hosing the hack cover will automatically wind the film to first exposure

Auto film winding: Two auto film-winding modes; single Irame mode and consecutive nnxle

(approx 1 7 sec /trame)

Auto start at the end of roll. Auto stop upon completion of rew inding. Rew inding time: approx 20

sec. with 24 exposure film. Rewinding in mid-roll prouded

Automatic readout of successive frame numbers in ascending order when shooting, and descending

order when rewinding

Pentax power zoom 38-120mm f 4.0-8.8 9 elements in 7 groups. Angle of view: 59 -20.5

Pentax infrared active autofocusing with focus lock. Focusing range : 0.65m 2.1ft) - infin-

ity in wide 38mm, 0.85m ¹ 2.8ft ¹ - infinity in tele '120mm: Maximum magnification

approx. 16. IX¹, 0.45m 1.5ft : in Super Macro Magnification approx. 1/3;, Infinity-

landscape mode ¹ focus is fixed to infinity

Electronic zoom

Programmed Ah electronic shutter with speeds approx. 1/400 sec - l/5sec Bulb: l/2sec - III mm .

hlectromagnetic release

hlectronic red lamp indication. Approx. 10-sec delay with l.HI) indication Cancellation after

activation is possible.

Actual image zoom view finder: X3'i field-ot-view ratio. Magnification: approx. 0.47X i38mm

WIDE -1 24X '120mm TELE.:, Diopter 3- - 1D. AF frame. Picture frame. Close distance

compensation frame. Panoramic format picture area, Super Macro picture frame. Green

lamp lighting : in-focus signal. Green lamp blinking : close-distance warning. Red lamp

lightinjg : Flash-ready status. Red lamp blinking : Flash being charged. Infinity-landscape

lamp lighting : Infinity-landscape mode is in use.

Programmed auto-exposure control. Range: EV9.5- 17 at 38inm WIDE. HV I 1.5-17 at l20mmTKLL

>n Auto or Daylight-Synchro mode I ISO HK)>. EV6 0 -17 in 3Xmm WIDE.'EVK.O-17 120mm

1'M l- in Slow • Shutter-Speed mode. Automatic exposure compensation in a hackliI situation

Multiple exposure function provided

The exposure meter is turned on by half depression of the shutter release button

Built-in zoom flash with red-eye reduction mode, Automatic flash emission in low-luminance or a

baeklit situation, Flash-ON=Daylight-Synchro/Slow-Shutter-Speed Synchro (up to 1/5 sec.), Flash-

OFF=Flash override, Bulb-Synchro=l/2sec.-10 min.

0.65-4.6m (38mm WIDE), 0.85-2.6m (120mm TELE),(ISO 100 film used)

Approx. 5 sec. under Pentax testing conditions

Infrared wireless remote control, Step zooming at TELE (120mm), 65mm, WIDE (38mm),

Effective range : 5m from the front when projected from the camera's front. Immediate-

release and 3-second delay can be switched by camera's Drive button.

One lithium battery CR1620 (replaced by the Pentax Service facility)

23.5(W) X 68.5(L) X 15.0(D)mm (0.9'X2.7" X0.6"), 15g (0.5oz.)

One 3V lithium battery (CR-123A or the equivalent)

Approx. 15 rolls of 24 exposure film when 50% of shooting uses flash (under Pentax testing

conditions)

(Q) appears on the LCD panel. Shutter is locked when the (Q) is blinking

Crystal quartz controlled; LCD with digital clock, auto calendar

"Year, Month and Day", "Day, Hour and Minute", "— blank", "Month, Day and Year"

or "Day, Month and Year".

125(W) X 70.0(H) X 55.0(D)mm(4.9" X 2.8" X 2.2" )280grams, (9.9oz) (without battery)

125(W) X70.0(H) X58.0(D)mm(4.9" X2.8" X2.3")290grams, (10.2oz) (without battery)

Pentax Espio 928 black date (1994)

SPECIFICATIONS

Type : 35mm fully automatic leaf-shutter camera with built-in zoom lens and auto flash

Film : Auto film speed setting with 35mm perforated DX-coded film with ISO rating from

25 to 3200 (lEV step). Non-DX coded films are automatically set to IS025

Format : 24 X 36mm (13X36 in panoramic format)

Film loading, : Auto film loading Closing the back cover will automatically wind the film to first

exposure

Film winding : Auto film-winding : single-frame advance mode.

Film rewinding : Auto start at the end of roll. Auto stop upon completion of rewinding. Rewinding

time : approx 20 sec. with 24-exposure film. Rewinding in mid-roll provided.

Frame number : Automatic readout of successive frame numbers in ascending order when shooting,

and descending order when rewinding.

Lens Pentax power zoom 28-90mm f/3.5-9 9 elements in 7 groups, Angle of view : 75°-

27°.

Focusing system Pentax infrared active Multi-beam autofocusing with focus lock. Switchable to

Spot AF made. Range : 0.58m (1.9ft) -infinity (Maximum magnification approx.

1/5.8X). Infinity-landscape mode (focus is fixed to infinity), Easy Pic. mode (focus

is fixed at 2.9m).

Zooming : Electronic zoom

Shutter : Programmed AE electronic shutter with speeds approx. l/400sec. -1/5 sec. Bulb :

1/2 sec.-10 min., Electromagnetic release

Self timer : Electronic red lamp indication. Approx. 10— sec. delay with LED indication.

Cancellation after activation is possible.

Viewfinder : Actual image zoom viewfinder : 83% field-of-view ratio, Magnification : approx.

0.32X (28mm) -0.94X (90mm), Diopter : -2.5 - +0.5D, AF frame, Picture frame,

Close distance compensation frame, Panoramic format picture area, Green lamp

lighting : in-focus signal, Green lamp blinking : close-distance warning, Red lamp

lighting : Flash-ready status, Red lamp blinking : Flash being charged.

Exposure control : Programmed auto-exposure control. Range : EV8.6-17 at 28mm, EV11.6-17 at 90

mm in Auto or Daylight-Synchro mode (ISO 100), EV 6.0-17 in 28 mm,

EV8.4-17 at 90mm in Slow-Shutter-Speed mode. Automatic exposure

compensation in a backlit situation.

compensation : +/ —3EV (0.5EV step)

Exposure-meter switch : The exposure meter is turned on by half depression of the shutter release button.

Built-in zoom flash with red-eye reduction mode, Automatic flash emission in

low-luminance or a backlight situation, Flash-ON = Daylight-Synchro / Slow-

Shutter-Speed Synchro (up to 1/5 sec.), Flash-OFF = Flash override, Bulb-Synchro

= 1/2 sec.-10 min.

0.58-5.0m (28mm),0.58-2.4m (90mm),(ISO 100 film used)

Approx. 5 sec. under Pentax testing conditinos

Infrared wireless remote control, Step zooming at 28mm, 90mm, 50mm and 28mm,

Effective range : 5m from the front when projected from the camera's front.

One lithium battery CR1620 (replaced by the Pentax Service facility)

23.5 (W) X68.5 (L)XI5.0 (D), 0.9" X2.7" X0.6", 15g (0.5oz)

One 3V lithium battery (CR123A or the equivalent)

Approx. 15 rolls of 24 exposure film when 50% of shooting uses flash (under Pentax

testing conditions)

) is blinking

Crystal quartz controlled ; LCD with digital clock, auto calendar

"Year, Month and Day", "Day, Hour and Minute" or blank

126.5 (w) X 73 (H) X54.5 (D)(5.0" X2.9" X2.l") 305 grams, (l0.8oz.)(without

battery)

DATE model: 126.5 (W)X73 (H)X57.5 (D) (5.0* X 2.9" X 2.3") 315 grams, (1 l.loz.) (without

battery)

Pentax Espio 928 silver date (1994)
