1982 - 1985

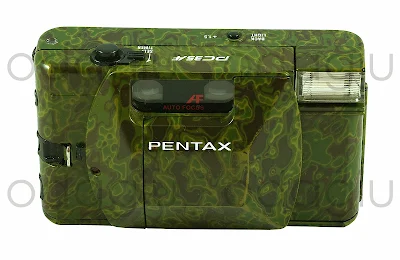

Pentax PC35AF camouflage   (1982)



SPECIFICATIONS:

Type: 35mm leaf shutter camera featuring auto focus control and built-in flash

unit

Film: 35mm film

Picture size: 24 x 36mm

Lens: Pentax 35mm f/2.8; 5-element in 5-group configuration; angle of view, 63°;

minimum focusing distance, 0.7m

Focusing: Infrared Active Auto Focus System, equipped with "focus lock," and an auto

focus control range from 0.7m to « (infinity)

Shutter Programmed AE electronic shutter, with variable speeds of approx. 1/8 to

1/430 sec.

Self-timer: Electronic; equipped with an electronic audible "beep" and an additional lamp

indicator. Time delay of approximately 10 sees.; 3-sec. prior to shutter release

warning, incorporated; w/shutter button activation

Viewfinden Albada type, bright frame finder; field of view, 85%; 0.5x magnification

Viewfinder display: Picture frame; auto focusing frame; parallax compensation indicator for

short distance; zone focusing markers; distance indicator needle; battery check

display; and, camera shake warning indicator

Camera shake warning device: Audible electronic signal with simultaneous ORANGE lamp

lighting in viewfinder

Film wind: Thumb wheel w/winding angle of 360°

Film counter Automatic zero reset; normal count; 0, 20, 24 and 36, color (orange) coded

indications

Film rewinding: Crank winding, and film rewinding button reset automatically

Exposure meter Programmed auto exposure control, utilizing CdS cell light detector; light

measuring range from EV6 (approx. 1/8 sec. at f/2.8) to EV17 (approx. 1/430

sec. at f/17) with ASA/ISO 100 film

Film speed range: ASA/ISO 25 ~ 400

Exposure metering switch: By shutter button (Shutter button does not operate while lens

protector is closed).

Power supply: Two 1.5V mini batteries (Alkaline batteries AAA); NiCd batteries are not

compatible and must not be used.

Exposure compensation: Exposure compensation of +1.5 steps possible by depressing

compensation button

Flash: Built-in; "pop-up" flash head type with lever control—camera's electrical

circuitry automatically synchronizes for flash-use mode.

(FJash is not operable while lens protector is closed, and flash head will not

pop-up.)

Flash ready display: By ORANGE lamp next to viewfinder eyepiece

Guide number 11 (ASA/ISO 100, m)

Flash coupling range: 0.7 to 4m (w/ASA/ISO 100 film); 1.4 to6m (ASA/ISO 400)

Recycling interval: Approx. 8 sec. utilizing fresh set of AAA batteries

Number of flash: Approx. 100 flashes (by the time when the flash is recycled with the interval

of 30 sees.)

Size & weight 116(w) x 66.5(h) x 45.5(d) mm; 275g (without batteries)

Accessories: Neck-strap

Pentax PC35AF red + winder   (1982)

SPECIFICATIONS:

Type: 35mm leaf shutter camera featuring auto focus control and built-in flash

unit

Film: 35mm film

Picture size: 24 x 36mm

Lens: Pentax 35mm f/2.8; 5-element in 5-group configuration; angle of view, 63°;

minimum focusing distance, 0.7m

Focusing: Infrared Active Auto Focus System, equipped with "focus lock," and an auto

focus control range from 0.7m to « (infinity)

Shutter Programmed AE electronic shutter, with variable speeds of approx. 1/8 to

1/430 sec.

Self-timer: Electronic; equipped with an electronic audible "beep" and an additional lamp

indicator. Time delay of approximately 10 sees.; 3-sec. prior to shutter release

warning, incorporated; w/shutter button activation

Viewfinden Albada type, bright frame finder; field of view, 85%; 0.5x magnification

Viewfinder display: Picture frame; auto focusing frame; parallax compensation indicator for

short distance; zone focusing markers; distance indicator needle; battery check

display; and, camera shake warning indicator

Camera shake warning device: Audible electronic signal with simultaneous ORANGE lamp

lighting in viewfinder

Film wind: Thumb wheel w/winding angle of 360°

Film counter Automatic zero reset; normal count; 0, 20, 24 and 36, color (orange) coded

indications

Film rewinding: Crank winding, and film rewinding button reset automatically

Exposure meter Programmed auto exposure control, utilizing CdS cell light detector; light

measuring range from EV6 (approx. 1/8 sec. at f/2.8) to EV17 (approx. 1/430

sec. at f/17) with ASA/ISO 100 film

Film speed range: ASA/ISO 25 ~ 400

Exposure metering switch: By shutter button (Shutter button does not operate while lens

protector is closed).

Power supply: Two 1.5V mini batteries (Alkaline batteries AAA); NiCd batteries are not

compatible and must not be used.

Exposure compensation: Exposure compensation of +1.5 steps possible by depressing

compensation button

Flash: Built-in; "pop-up" flash head type with lever control—camera's electrical

circuitry automatically synchronizes for flash-use mode.

(FJash is not operable while lens protector is closed, and flash head will not

pop-up.)

Flash ready display: By ORANGE lamp next to viewfinder eyepiece

Guide number 11 (ASA/ISO 100, m)

Flash coupling range: 0.7 to 4m (w/ASA/ISO 100 film); 1.4 to6m (ASA/ISO 400)

Recycling interval: Approx. 8 sec. utilizing fresh set of AAA batteries

Number of flash: Approx. 100 flashes (by the time when the flash is recycled with the interval

of 30 sees.)

Size & weight 116(w) x 66.5(h) x 45.5(d) mm; 275g (without batteries)

Accessories: Neck-strap

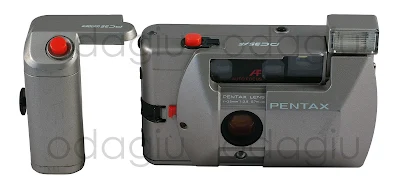

Pentax PC35AF silver + winder   (1982)

SPECIFICATIONS:

Type: 35mm leaf shutter camera featuring auto focus control and built-in flash

unit

Film: 35mm film

Picture size: 24 x 36mm

Lens: Pentax 35mm f/2.8; 5-element in 5-group configuration; angle of view, 63°;

minimum focusing distance, 0.7m

Focusing: Infrared Active Auto Focus System, equipped with "focus lock," and an auto

focus control range from 0.7m to « (infinity)

Shutter Programmed AE electronic shutter, with variable speeds of approx. 1/8 to

1/430 sec.

Self-timer: Electronic; equipped with an electronic audible "beep" and an additional lamp

indicator. Time delay of approximately 10 sees.; 3-sec. prior to shutter release

warning, incorporated; w/shutter button activation

Viewfinden Albada type, bright frame finder; field of view, 85%; 0.5x magnification

Viewfinder display: Picture frame; auto focusing frame; parallax compensation indicator for

short distance; zone focusing markers; distance indicator needle; battery check

display; and, camera shake warning indicator

Camera shake warning device: Audible electronic signal with simultaneous ORANGE lamp

lighting in viewfinder

Film wind: Thumb wheel w/winding angle of 360°

Film counter Automatic zero reset; normal count; 0, 20, 24 and 36, color (orange) coded

indications

Film rewinding: Crank winding, and film rewinding button reset automatically

Exposure meter Programmed auto exposure control, utilizing CdS cell light detector; light

measuring range from EV6 (approx. 1/8 sec. at f/2.8) to EV17 (approx. 1/430

sec. at f/17) with ASA/ISO 100 film

Film speed range: ASA/ISO 25 ~ 400

Exposure metering switch: By shutter button (Shutter button does not operate while lens

protector is closed).

Power supply: Two 1.5V mini batteries (Alkaline batteries AAA); NiCd batteries are not

compatible and must not be used.

Exposure compensation: Exposure compensation of +1.5 steps possible by depressing

compensation button

Flash: Built-in; "pop-up" flash head type with lever control—camera's electrical

circuitry automatically synchronizes for flash-use mode.

(FJash is not operable while lens protector is closed, and flash head will not

pop-up.)

Flash ready display: By ORANGE lamp next to viewfinder eyepiece

Guide number 11 (ASA/ISO 100, m)

Flash coupling range: 0.7 to 4m (w/ASA/ISO 100 film); 1.4 to6m (ASA/ISO 400)

Recycling interval: Approx. 8 sec. utilizing fresh set of AAA batteries

Number of flash: Approx. 100 flashes (by the time when the flash is recycled with the interval

of 30 sees.)

Size & weight 116(w) x 66.5(h) x 45.5(d) mm; 275g (without batteries)

Accessories: Neck-strap

Pentax PC35AF black + winder   (1982)

SPECIFICATIONS:

Type: 35mm leaf shutter camera featuring auto focus control and built-in flash

unit

Film: 35mm film

Picture size: 24 x 36mm

Lens: Pentax 35mm f/2.8; 5-element in 5-group configuration; angle of view, 63°;

minimum focusing distance, 0.7m

Focusing: Infrared Active Auto Focus System, equipped with "focus lock," and an auto

focus control range from 0.7m to « (infinity)

Shutter Programmed AE electronic shutter, with variable speeds of approx. 1/8 to

1/430 sec.

Self-timer: Electronic; equipped with an electronic audible "beep" and an additional lamp

indicator. Time delay of approximately 10 sees.; 3-sec. prior to shutter release

warning, incorporated; w/shutter button activation

Viewfinden Albada type, bright frame finder; field of view, 85%; 0.5x magnification

Viewfinder display: Picture frame; auto focusing frame; parallax compensation indicator for

short distance; zone focusing markers; distance indicator needle; battery check

display; and, camera shake warning indicator

Camera shake warning device: Audible electronic signal with simultaneous ORANGE lamp

lighting in viewfinder

Film wind: Thumb wheel w/winding angle of 360°

Film counter Automatic zero reset; normal count; 0, 20, 24 and 36, color (orange) coded

indications

Film rewinding: Crank winding, and film rewinding button reset automatically

Exposure meter Programmed auto exposure control, utilizing CdS cell light detector; light

measuring range from EV6 (approx. 1/8 sec. at f/2.8) to EV17 (approx. 1/430

sec. at f/17) with ASA/ISO 100 film

Film speed range: ASA/ISO 25 ~ 400

Exposure metering switch: By shutter button (Shutter button does not operate while lens

protector is closed).

Power supply: Two 1.5V mini batteries (Alkaline batteries AAA); NiCd batteries are not

compatible and must not be used.

Exposure compensation: Exposure compensation of +1.5 steps possible by depressing

compensation button

Flash: Built-in; "pop-up" flash head type with lever control—camera's electrical

circuitry automatically synchronizes for flash-use mode.

(FJash is not operable while lens protector is closed, and flash head will not

pop-up.)

Flash ready display: By ORANGE lamp next to viewfinder eyepiece

Guide number 11 (ASA/ISO 100, m)

Flash coupling range: 0.7 to 4m (w/ASA/ISO 100 film); 1.4 to6m (ASA/ISO 400)

Recycling interval: Approx. 8 sec. utilizing fresh set of AAA batteries

Number of flash: Approx. 100 flashes (by the time when the flash is recycled with the interval

of 30 sees.)

Size & weight 116(w) x 66.5(h) x 45.5(d) mm; 275g (without batteries)

Accessories: Neck-strap

Pentax PC35AF M   (1984)

SPECIFICATIONS:

Type: All-automatic 35mm leaf-shutter camera with built-in flash.

Usable Film: 35mm film with 24 x 36mm format.

Lens: Pentax 35mm f/2.8, 5 elements in 5 groups.

Focusing: Pentax infrared active triangular measuring system (0.7m to infinity) with focus lock device.

Exposure Control: Programmed automatic exposure control from EV6 (f/2.8 at 1 /8 sec.) to EV1 7

(f/16 at 1/430 sec.) at ISO 100 with CdS-cell metering. Slow shutter warning by LED display and

PCV sound.

Viewfinder: Albada bright-frame viewfinder. 85% picture area. 0.44X magnification. Dipotry -0.9.

Viewfinder Information: Auto focus frame. Picture area frame, Parallax correction frame. Distance

indicator needle. Zone focus marks, Red/Green lamp.

Shutter: Electronically programmed behind-the-lens shutter, shutter speed from approx. 1/8 to 1/430

sec. Mechanical release.

Film Loading: Automaticfilm loading; closing back cover automatically advances film tofirst frame.

Film Winding: Electronic winding system with film advance indicator. Winding speed: 0.7 sec. per frame.

Film Rewinding: Semi-automatic electric rewind mechanism. Indicated by film advance indicator.

Rewind speed: 30 sec. for 36-exposure film.

Film Speed Setting: 1) DX film auto setting — ISO 25 to 1600 in 113 steps. 2) Manual setting —

ISO 100, 200, 400, 1000.

Self-timer: 10 sec. delay electronic self-timer with PCV sound and LED display.

Flash: Built-in pop-up type with flash ready lamp. Guide number: 11 (ISO 100, m)

Flash Recycling Time: About 6 seconds with fresh alkaline batteries.

Number of Flashes: About 10 rolls of 24-exposure film or about 7 rolls of 36-exposure film at 30-sec.

interval and at normal temperatures.

Other Features: 1) Lens protector 2) Film type indicator.

Power Source: Two "AA" Alkaline batteries. Ni-Cd batteries not usable.

Size & Weight: 129IW) x 69(H) x 46(D)mm (5.1 x 2.7 x 1.8 in.), 320 g (11.3 oz.) without batteries.

Accessory: Strap

PC35AF-M DATE

Type: All-automatic 35mm leaf-shutter camera with built-in flash and auto dating unit.

Data Recording Systems: An internal recording lamp records information onto the reverse side of

films, utilizing 6-digit liquid crystal characters.

Data Imprinting Mode: Push buttons to set unit to any of three modes; "Year/Mon/Day," "Hour/

Min," or "-----" (blank). The year, leap year, and month (odd or even numbered days) are

automatically adjusted. Year/Mon/Day mode: Year ("80" to "19" - 1980 to 2019); Month ("1"

to "21"); Day ("1" to "31") Hour/Min modes: Hour ("0" to "23"); Minute ("00" to "59")

Blank mode: "-----" (no data imprinted).

Power Source: Two 1,5V alkaline or silver-oxide batteries.

Recording Confirmation: "PRINT" appears in Display Window to indicate data have been recorded.

Number of Recordings: Approx. 5,000 recordings; normally, one year's operation.

Film Speed Setting: Automatic switching (ISO 64 ~ 1600)

Size & Weight: 129(W) x 69(H) x 51.5(D)mm (5.1 x 2.7 x 2 in.), 340 g (12 oz.) without batteries.

Pentax Pino 35   (1984)

Specifications:

Type: 35mm camera, with mechanical leaf

shutter and built-in flash unit.

Lens: Pentax Lens 38mm f/3.8; three element,

three lens-group composition.

Shutter: Mechanical leaf shutter, with 1/125

sec. fixed shutter speed.

Exposure Control: CdS sensor; variable

aperture settings by means of weather symbols

(f/3.8 ~ f/191; LED signal lamp within viewfinder

for low light warning.

Film Spaed Index: ISO 100, 200 and 400.

Viewfinder: Inverted-Galilean-type, direct-view

finder, magnification of 0.5X; with LED signal

lamp for low light warning, within viewfinder.

Focusing Control: Fixed focus type, with in-

focus range covering 1.5 meters to infinity.

Film Advance: Film advance knob.

Film Rewind: Film rewind crank (folding).

Exposure Counter: Self resetting, additive type.

Flash Exposure Capacity: More than 360 flash

shots in successive sequence (in ambient

temperatures of 20 degrees C, using fresh

manganes alkaline batteries).

Flash Unit: On/off slide switch; variable flash

range using flash guide symbols; output

equivalent to GN 12 (ISO 100, in meters).

Flash range 1.2 ~ 4.0 meters. Built-in flash-ready

lamp. Recycling time of about 7 sec. (using fresh

manganese alkaline batteries, in ambient

temperatures of 20 degrees C).

Power Source: Two 1,5V AA penlight batteries,

used to power the flash and exposure metering

systems. Ni-Cd batteries not suitable.

Dimensions: 118 (W) x 70 (H) x 48 (D) mm.

Weight: 175 grams (w/o batteries).

Pentax SPORT   (1984)



SPECIFICATIONS:

Type: Fully automatic leaf-shutter camera with built-in pop-up flash, auto film speed setting, auto

focusing, auto exposure control, auto film winding, and auto rewinding.

Film: 35mm perforated cartridge film. 24 x 36mm format.

Lens: Pentax 35mm f/3.5, 4 elements in 4 groups.

Focusing: Pentax infrared active triangular measuring system (1 m to infinity) with focus lock device.

Exposure Control: Programmed automatic exposure control from EV8 to EV15 at ISO 100 with CdS

cell metering. Slow shutter warning by LED display.

Viewfinder: Albada bright-frame viewfinder. Picture area: 85%. Magnification: 0.44X. Diopter: -0.86

diopter.

Viewfinder Information: Picture area frame, parallax correction frame, auto focus spot.

Shutter: Electronically programmed behind-the-lens shutter, shutter speed from approx. 1 /20 to

1/400 sec. Electro-magnetic release.

Film Winding: Automatic winding system with film advance indicator. Winding speed 1 sec. per

frame.

Film Loading: Automatic film loading

Film Rewinding: Semi-automatic rewind mechanism. Rewind Speed: 40 sec. for 36-exposure film.

Film Speed Setting:

1) DX film auto setting — ISO 100 to ISO 1000.

2) Manual setting — ISO 100, 200, 400, 1000.

Flash: Built-in pop-up type with flash ready light. Guide number 10 (ISO 100/m).

Flash Recycling Time: Approx. 5 seconds with fresh alkaline batteries.

Number of Flashes: About 10 rolls of 24-exposure film or about 7 rolls of 36 exposure film at 30-

second intervals and at normal temperatures.

Power Source: Two "AA" alkaline batteries.

Size & Weight: 120mm x 68.5mm x 46mm (4.7" x 2.7" x 1.8"); 285 g (10.1 oz.) without batteries.

SPORT Date

Data Recording System: An internal recording lamp records information onto reverse side of film.

Data Imprinting Mode: Push buttons to set unit to any of three modes; "Year/Mon/Day",

"Hour/Min", or "....." (blank). Year/Mon/Day mode ("80" to "19" — 1980 to 2019): Month

("1" to "12"); Day ("1" to "31"). Hour/Min mode: Hour ("0" to "23"); Minute ("00" to "59").

Blank Mode: "....." (no data imprinted).

Power Source: One 3V lithium battery.

Size & Weight: 120mm x 68.5mm x 46mm (4.7" x 2.7" x 1.8"): 295 g (10.4 oz.) without batteries.

Pentax Sport 35 Motor date   (1984)

Pentax PC35AF-M SE   (1985)

Specifications:

Type: All-automatic 35mm leaf-shutter camera with built-in flash and auto dating unit.

Data Recording Systems: An internal recording lamp records information onto the reverse side of

films, utilizing 6-digit liquid crystal characters.

Data Imprinting Mode: Push buttons to set unit to any of three modes; "Year/Mon/Day," "Hour/

Min," or "-----" (blank). The year, leap year, and month (odd or even numbered days) are

automatically adjusted. Year/Mon/Day mode: Year ("80" to "19" - 1980 to 2019); Month ("1"

to "21"); Day ("1" to "31") Hour/Min modes: Hour ("0"tO "23"); Minute ("00" to "59")

Blank mode: "-----" (no data imprinted).

Power Source: Two 1,5V alkaline or silver-oxide batteries.

Recording Confirmation: "PRINT" appears in Display Window to indicate data have been recorded.

Number of Recordings: Approx. 5,000 recordings; normally, one year's operation.

Film Speed Setting: Automatic switching (ISO 64 ~ 1600)

Size 8c Weight: 129(W) x 69(H) x 51.5(D)mm (5.1 x 2.7 x 2 in.), 345 g (12.2 oz.) without batteries.

Pentax Pino 35M   (1985)

SPECIFICATIONS:

Picture size: 24 x 36 mm (135 film)

Film loading: Easy film loading Film

Lens: 35 mm f/3.8 coated glass 3-elements

Shutter: 1/125 sec. behind-the-lens

Film speeds: ISO 100/200, 400, 1000

Film speeds: ISO 100/200, 400, 1000

Built-in flash: two AA size batteries

Built-in flash: two AA size batteries

transport: Auto wind/rewind

Focusing: Flash-ln-Focus system

Dimensions: 133 x 70 x 50 mm

Weight: about 210grams without battery
