1986 - 1990

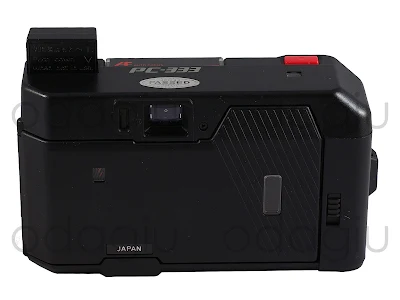

Pentax PC-333   (1986)

SPECIFICATIONS:

Type: Fully-automatic, leaf-shutter 35mm camera.

Film: 35mm DX film with ISO ratings from 50 - 1600; non-DX film with ISO 100.

Film loading: Automatic film loading.

Film winding/rewinding: Automatic winding system with film transport indicator; automatic rewinding at

the end of roll of film; rewind operation automatically stops as rewind is completed; possible to rewind

in mid-roll with film rewind button; rewind speed: approx. 30 sec. for 24-exposure film.

Frame counter: Automatic reset.

Lens: Pentax 35mm f/3.5, 3 elements in 3 groups, 63° angle of view.

Focusing: Infrared-active auto focusing system, autofocus range from one meter (3.3 ft.) to infinity,

built-in focus-lock device.

Shutter: Programmed-AE-type electronic shutter with speeds from approx. 1/500 to 1/30 sec.

Viewfinder: Albada bright.frame viewfinder, 85% picture area, 0.45 magnification, -1 diopter.

Viewfinder display: Picture-area frame, autofocus spot, parallax-correction frame, green lamp lights up to

indicate correct exposure, green lamp flickers to indicate underexposure.

Exposure control: Programmed-AE control from EV 8.6 (approx. 1/30 sec., f/3.5) to EV 17 (approx.

1/500 sec., f/16) at ISO 100 with SPD cell metering.

Meter switch: Shutter button (locked when lens cover is closed).

Flash: Built-in pop-up type with flash-ready indicator, guide number of 10 (ISO 100 in meter).

Flash control range: 1 - 3.5 m (3.3 - 11.5 ft.) with ISO 100 film.

Flash recycle time: Approx. 6 sec. (with fresh alkaline batteries).

Number of flashes: Approx. 8 rolls of 24-exposure film; approx. 5 rolls of 36-exposure film (at 30 sec.

intervals and normal temperatures).

Power source: Two AA-size alkaline batteries.

Dimensions: 119.5(W) x 68.5(H) x 49.5(D)mm (4.7" x 2.7" x 1.9").

Weight: 260 g (9.2 oz.)

Accessory: Strap

PC-333 DATE

Film: DX film with ISO 64 — 1600 (automatic film-speed switching).

Data recording system: An internal recording lamp records information onto reverse side of film.

Data imprinting mode: Push buttons to set unit to any of three modes; "Year/Mon/Day," "Hour/Min

or "....." (blank). Year/Mon/Day model ("80" to "19" - 1980 to 2019): Month ("1" to "12")

Day ("1" to "31"). Hour/Min mode: Hour ("0" to "23"); Minute ("00" to "59").

Blank mode "-----" (no data imprinted).

Power sources: One lithium battery for clock and data display; camera's batteries also serve for data

imprinting.

Dimensions: 119.5(W) x 68.5(H) x 52.5(D)mm (4.7" x 2.7" x 2.1")

Weight: 275 g (9.7 oz.)

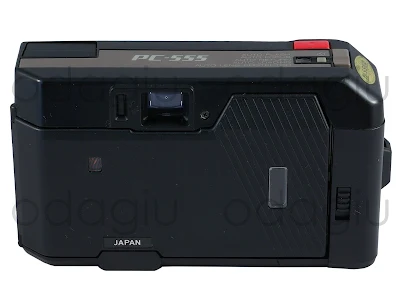

Pentax PC-555   (1986)

SPECIFICATIONS:

Type: 35 mm fully-automatic, leaf-shutter camera.

Film: 35 mm DX film with ISO ratings from 50 to 1600 or non-DX film with ISO 100.

Film loading: Automatic film loading. Closing back cover automatically sets film to first frame.

Film wind/rewind: Automatic winding system (approx. one frame per sec., single exposure only);

automatic rewinding at end of roll (rewind speed: approx. 30 sec. for 24-exposure film); automatic

rewind stop (possible to rewind in mid-roll); film-transport indicator provided.

Frame counter: Automatic reset type.

Lens: Pentax 35 mm f/2.8 with 4 elements in 4 groups, 63° angle of view and minimum focus

distance of 0.7 m.

Lens cover: Automatic opening/closing, coupled with shutter release.

Focusing: Infrared-active autofocus system; autofocus range from 0.7 m to infinity; built-in focus-lock

device.

Shutter: Programmed-AE type electronic shutter with speeds from approx. 1/500 to 1/30 sec.

Self-timer: 10-sec. delay electronic type with red lamp and activator button; possible to interrupt

operation.

Viewfinder: Albada-bright-frame viewfinder with autofocus spot, picture-area frame, parallax-correction

frame and distance marks. Shows 85% of picture area. 0.45X magnification.

Exposure: Programmed-AE control from EV 8 (approx. 1/30 sec., f/2.8) to EV 17 (approx. 1/500 sec.,

f/16) at ISO 100, with SPD light sensor

Meter switch: Shutter button. Flash: Built-in pop-up type with flash-ready indicator and guide number

of 11 (ISO 100 in meter).

Flash: Built-in, pop-up type with flash-ready indicator and guide number of 11 (ISO 100, meter).

Flash control range: 0.7~ 4 m (2.3 ~ 13.1 ft.) with ISO 100 film.

Recycle time: Approx. 6 sec. with fresh alkaline batteries.

Number of flashes: Approx. 8 rolls of 24-exposure film or 5 rolls of 36-exposure film (at 30-sec.

intervals and at normal temperatures).

Power source: Two AA-size alkaline batteries. Ni-Cd batteries not suitable.

Dimensions: 119.5IW) x 68.5(H) x 49.5(D) mm (4.7" x 2.7" x 1.9")

Weight: 270 g (9.5 oz.)

Accessory: Strap

PC-555 DATE

Film: DX film with ISO 64 — 1600 (automatic film-speed switching).

Data recording system: An internal recording lamp records information onto reverse side of film.

Data imprinting mode: Push buttons to set unit to any of three modes; "Year/Mon/Day," "Hour/Min,

or"....." (Blank). Year/Mon/Day mode ("80" to "19"- 1980 to 2019): Month ("1"to "12");

Day ("1" to "31"). Hour/Min mode: Hour ("0" to "23"); Minute ("00" to "59").

Blank mode "....." (no data imprinted).

Power sources: One lithium battery for clock and data display; camera's batteries also serve for data

imprinting.

Dimensions: 119.5 (W) x 68.5(H) x 52.5(D) mm (4.7" x 2.7" x 2.1")

Weight: 285 g (10oz.) Pentax PC-555 gold  (1986) SPECIFICATIONS: Type: 35 mm fully-automatic, leaf-shutter camera. Film: 35 mm DX film with ISO ratings from 50 to 1600 or non-DX film with ISO 100. Film loading: Automatic film loading. Closing back cover automatically sets film to first frame. Film wind/rewind: Automatic winding system (approx. one frame per sec., single exposure only); automatic rewinding at end of roll (rewind speed: approx. 30 sec. for 24-exposure film); automatic rewind stop (possible to rewind in mid-roll); film-transport indicator provided. Frame counter: Automatic reset type. Lens: Pentax 35 mm f/2.8 with 4 elements in 4 groups, 63° angle of view and minimum focus distance of 0.7 m. Lens cover: Automatic opening/closing, coupled with shutter release. Focusing: Infrared-active autofocus system; autofocus range from 0.7 m to infinity; built-in focus-lock device. Shutter: Programmed-AE type electronic shutter with speeds from approx. 1/500 to 1/30 sec. Self-timer: 10-sec. delay electronic type with red lamp and activator button; possible to interrupt operation. Viewfinder: Albada-bright-frame viewfinder with autofocus spot, picture-area frame, parallax-correction frame and distance marks. Shows 85% of picture area. 0.45X magnification. Exposure: Programmed-AE control from EV 8 (approx. 1/30 sec., f/2.8) to EV 17 (approx. 1/500 sec., f/16) at ISO 100, with SPD light sensor Meter switch: Shutter button. Flash: Built-in pop-up type with flash-ready indicator and guide number of 11 (ISO 100 in meter). Flash: Built-in, pop-up type with flash-ready indicator and guide number of 11 (ISO 100, meter). Flash control range: 0.7~ 4 m (2.3 ~ 13.1 ft.) with ISO 100 film. Recycle time: Approx. 6 sec. with fresh alkaline batteries. Number of flashes: Approx. 8 rolls of 24-exposure film or 5 rolls of 36-exposure film (at 30-sec. intervals and at normal temperatures). Power source: Two AA-size alkaline batteries. Ni-Cd batteries not suitable. Dimensions: 119.5IW) x 68.5(H) x 49.5(D) mm (4.7" x 2.7" x 1.9") Weight: 270 g (9.5 oz.) Accessory: Strap PC-555 DATE Film: DX film with ISO 64 — 1600 (automatic film-speed switching). Data recording system: An internal recording lamp records information onto reverse side of film. Data imprinting mode: Push buttons to set unit to any of three modes; "Year/Mon/Day," "Hour/Min, or"....." (Blank). Year/Mon/Day mode ("80" to "19"- 1980 to 2019): Month ("1"to "12"); Day ("1" to "31"). Hour/Min mode: Hour ("0" to "23"); Minute ("00" to "59"). Blank mode "....." (no data imprinted). Power sources: One lithium battery for clock and data display; camera's batteries also serve for data imprinting. Dimensions: 119.5 (W) x 68.5(H) x 52.5(D) mm (4.7" x 2.7" x 2.1") Weight: 285 g (10oz.)

Pentax Pro Quartz date   (1987)

Pentax mini sport 35AF   (1987)

Specifications

FILM FORMAT: 35mm standard cassette (DX coded)

24 x 36mm.

LENS: 35mm F3.8, 3 elements 3 groups (optical glass lens)

VIEWFINDER: Bright-line frame finder, 0.38 x with Red

LED Low Light signal.

FOCUSING: Active Infrared autofocus system. Focusing

range 1.2m to infinity.

SHUTTER: Electronic programmed shutter (1/90 — 1/360

sec.)

FILM SPEED: Automatic film speed setting with DX cod-

ed ISO 100 to 400.

EXPOSURE CONTROL: Programmed automatic exposure

control. Automatic exposure range EV10.5 to EV14.5 (ISO

100).

FILM LOADING: Easy loading

FILM TRANSPORT: Automatic winding and stops when

last frame is exposed. Automatic rewinding with actua-

tion of rewind lever and stops when film is rewound into

cassette.

EXPOSURE COUNTER: Additive type with automatic

BUILT-IN FLASH: Guide Number 11 (ISO 100 m); Manual

Pop-up; Flash ready lamp. Flash range ISO 100: 1.3 to

4m ISO 400: 2 to 7m

BATTERIES: Two 1.5V "AA" penlight alkaline batteries.

Ni-Cd batteries not usable.

DIMENSIONS: 124.5(W)x71(H)x47(D)mm

WEIGHT: 230 grams (without batteries)

Pentax PC-35 R   (1987)

SPECIFICATIONS:

Film Size .................. 35mm Film

Frame Size ................. 24 x 36mm

Lens ....................... 1 : 3.8 34mm 3-group 3-element construction

Shutter .................... Behind-the-Lens-Mechanical Release Shutter

1/125 sec.

Focus Adjustment ........... Fixed Focus,Flash-in Focus,and with Macro

Viewfinder:

- Type ..................... Albada-type Bright Frame Viewfinder

- Magnification ............ 0.38X

Focus Distance ............. 1.2 meters - (jo ( Infinity )

Film Winding ............... Thumb Wheel Winding

Film Rewinding ............. Crank Rewinding

Film Counter ............... Additive, Automatic Reset actuated by opening

Back Cover

Film Speeds................. ASA/ISO 100,200, and 400

Built-in Flash ............. Guide Number 9 (ISO 100.m)

Flash Ready Light glows when flash is ready

for shooting.

Red (LED) Low Light Warning lamp glows

in poor lighting condition when shutter

is depressed half-way.

Others ..................... Film-information window shows type of film

loaded.

Power Source ............... One (1) 1.5V AA-size Battery (Ni-Cd batteries

NOT USABLE)

Dimensions ................. 116(W) X 69(H) X 47(D)mm

Weight ..................... 152 g. (without battery)

Pentax Domino   (1987)



Pentax Pino 35J   (1987)

1) Film Size .................. 35mm Film

2) Frame Size ................. 24 x 36mm

3) Lens ....................... 1 : 3.8 34mm 3-group 3-element construction

4) Shutter .................... Behind-the-Lens-Mechanical Release Shutter

1/125 sec.

5) Focus Adjustment ........... Fixed Focus,Flash-in Focus,and with Macro

6) Viewfinder:

- Type ..................... Albada-type Bright Frame Viewfinder

- Magnification ............ 0.38X

7) Focus Distance ............. 1.2 meters - (jo ( Infinity )

8) Film Winding ............... Thumb Wheel Winding

9) Film Rewinding ............. Crank Rewinding

10) Film Counter ............... Additive, Automatic Reset actuated by opening

Back Cover

11) Film Speeds................. ASA/ISO 100,200, and 400

12) Built-in Flash ............. Guide Number 9 (ISO 100.m)

Flash Ready Light glows when flash is ready

for shooting.

Red (LED) Low Light Warning lamp glows

in poor lighting condition when shutter

is depressed half-way.

13) Others ..................... Film-information window shows type of film

loaded.

14) Power Source ............... One (1) 1.5V AA-size Battery (Ni-Cd batteries

NOT USABLE)

15) Dimensions ................. 116(W) X 69(H) X 47(D)mm

16) Weight ..................... 152 g. (without battery)

Pentax Pino 35 S (1987)

Specifications:

Type: 35-mm leaf-shutter camera with built-in

flash

Lens: Pentax 35-mm f/3.8 lens, 3 elements in 3

groups, focusing distance from 1.3 meters to

infinity, close-up range from 0.45 to 1.0 meter

Shutter: 1/125 sec. behind-the-iens shutter

Viewfinder: Ordinary picture-area frame, parallax-

correction frame, red LED lamp for low-light

warning, 0.38 magnification

Film speed: ISO 100, 200, 400, 1000 or 1600

Flash: Guide number 11, flash-ready lamp, recycle

time 7 sec.

Film transport: Auto wind/rewind, auto-reset

exposure counter, film-transport indicator

Power source: Two AA-size alkaline batteries

Size & weight: 124IW) x 71IH) x 47(D)mm

(4.9 x 2.8 x 1.9 in.); 200 grams (7.1 oz.)

without batteries

 Pentax zoom-70 date  (1987)

Pentax zoom-70   (1987)

SPECIFICATIONS:

Type: 35-mm fully-automatic leaf-shutter camera with built-in zoom lens and auto flash. (Auto focusing,

auto exposure control, auto film-speed setting, auto-film loading, auto film winding, auto film

rewinding, and auto flash control.)

Film: 35-mm perforated cartridge DX-coded film with ISO rating from 50 to 1600. 24 x 36 mm format.

Lens: Pentax power zoom 35 ~ 70 mm f/3.5 ~ 6.7, 8 elements in 7 groups. 63° ~ 34.5° angle of view.

Autofocus range: one meter to infinity; 0.6 to one meter at MACRO (1 /8 magnification).

Focusing system: Pentax infrared active auto focusing.

Exposure control: Programmed auto-exposure control from EV 6 ~ 15 in WIDE setting, from EV 8 ~ 17

in TELE and MACRO settings at ISO 100 with CdS-cell metering.

Viewfinder: Zoom finder withalbada bright frame. Automatic parallax-compensation mechanism by

prism at MACRO setting. 82% field of view. Magnification: 0.35X at WIDE setting, 0.64X at TELE

setting. -1 diopter.

Viewfinder information: Picture-area frame, parallax-correction frame and autofocus frame.

Shutter: Programmed-AE, between-the-lens shutter with speeds from approx. 1/250 ~ 1/5 sec. Electro-

magnetic shutter release.

Exposure compensation: +2 steps.

Meter switch: Shutter-release button.

Film loading: Auto film loading.

Film winding: Auto film winding with LCD winding indication.

Film rewinding: Auto film rewinding at the end of roll with LCD rewinding indication. Rewind operation

stops when rewind is over. Provision for rewinding film in mid-roll.

Self-timer: 10-second-delay self-timer with LED indication.

Flash: Built-in auto discharge zoom flash.

Flash recycle time: Approx. 3 sec. with lithium battery pack or alkaline batteries (at normal temperatures

and humidity, and at the earlier stage of use).

Power source: One 6V lithium battery pack (DL-223A, CR-P2 or BR-P2) or four "AAA"-size alkaline batteries.

Battery life: Approx. 22 rolls of 24-exposure film with fresh lithium battery pack, or approx. 14 rolls of

24-exposure film with fresh alkaline batteries {at normal temperatures and humidity, and when flash

photography and non-flash shooting are made on 50-50 basis).

Size & weight: 139IW) x 75.5(H) x 62.5(D)mm (5.5" x 3.0" x 2.4"); 460 grams (16.2 oz.) without battery.

DATE model

Data imprinting mode: "Year-Month-Day," "Month-Day-Year," "Day-Month-Year," "Day-Hour-Minute,"

"A- or P-Hour: Minute" and "OFF" (blank).

Power source: Lithium battery (CR-2025) for clock and data display; camera's battery also serves for data

imprinting.

Size & weight: 139(W) x 75.5(H) x 64.5(D)mm (5.5" x 3.0" x 2.5"); 470 grams (16.6oz.) without battery.

Accessories for both models: Strap (standard) and soft case (optional).

Pentax zoom 70-S   (1988)

pentax zoom 70-S   (1988)

Pentax zoom 60   (1988)

SPECIFICATIONS:

Type: Fully automatic leaf-shutter compact camera with zoom lens and auto flash. (Automatic focusing,

automatic exposure control, automatic film-speed setting, automatic film loading, and automatic

film winding/rewinding.)

Film: 35mm perforated cartridge film. 24mm x 36mm format.

Lens: Pentax power zoom 38mm ~ 60mm f/4.5 ~ f/6.7; 6 elements in 5 groups.

Focusing system: Pentax infrared active automatic focusing system with focus-lock device.

Auto focusing ranges: 1m(3.3ft.) to infinity in ordinary shooting; 0.54m(1,8ft.) to 1m(3.3ft.) at MACRO.

Exposure control: Programmed automatic exposure control from EV 9.5 to EV 16.5 at WIDE, from

EV 10.5 to EV 16.5 at TELE and from EV 14 to EV 16.5 at MACRO (at ISO 100).

Shutter: Electronically programmed between-the-lens shutter with shutter speeds from approx. 1/250

sec. to 1/30 sec. Electro-magnetic release.

Viewfinder: Zoom finder with albada-bright frame. Automatic parallax compensation mechanism by

prism at MACRO. Picture area: 82%. Magnification: approx. 0.4X at WIDE and 0.6X at TELE

and MACRO. Information: picture frame mark, parallax compensation frame mark and auto-focus

frame mark.

External LCD indications: Exposure frame number, lens focal length, film winding/rewinding, ordinary-

shooting, macro shooting, daylight-sync flash and battery level.

Film loading: Automatic film loading with first-frame positioning.

Film winding: Automatic film winding.

Film rewinding: Automatic film rewind at end of roll. Automatic stop upon rewind completion.

Film-speed setting: Automatic film-speed setting with DX-coded film from ISO 50 to ISO 1600. (Fixed

setting at ISO 100 with non-DX-coded film and DX-coded film of ISO 25, ISO 32 and ISO 40.)

Flash: Built-in automatic discharge flash. Recycling time: approx. 3 sec. with fresh lithium battery.

Power source: One 6V lithium battery (CR-P2 or DL-223A).

Battery life: Approx. 125 rolls of 24-exposure film without flash; approx. 30 rolls of 24-exposure film

with flash used for 50% of shooting.

Dimensions: 135mm(W) x 73mm(H) x 57mm(D) (5.3" x 2.8" x 2.2")

Weight: 315g (11 oz.) without battery.

DATE model

Data-imprinting function: Selectable from five modes: day-month-year, month-day-year, year-month-

day, day-hour-minute, and "....." (no data). The power source: the 6V lithium battery that powers

the camera body.

Dimensions: 135mm(W) x 73mm(H> x 59mm(D) (5.3" x 2.9" x 2.3")

Weight: 325g (11.5 oz.) without battery.

Accessories for both models: Strap (standard) and soft case (optional). http://www.youtube.com/watch?v=pdfFjCKDZlk Pentax zoom 90   (1989)   Type: 35 mm fully automatic leaf-shutter camera with built-in zoom lens and auto flash. Film: Auto film speed setting with 35 mm perforated DX- coded film with ISO rating from 50 to 1600. 24 x 36 mm format Lens: Pentax power zoom 38 — 90 mm f/3.5 — 7.5, 8 elements in 7 groups. Two zooming speeds. Focusing system: Pentax infrared active auto focusing. Range: 1 m (3.3 ft) — infinity; 0.6 m (2 ft) — 1 m (3.3 ft) in MACRO. Exposure control: Programmed auto-exposure control. Range: EV 9 — 16.5 in WIDE, EV 11 — 16.5 in TELE and MACRO at Auto mode (ISO 100); EV 6 — 16.5 in WIDE, EV 8 - 16.5 in TELE and MACRO at Flash-On and Flash-Off modes (ISO 100); +1.5 EV exposure compensation provided. Viewfinder: Zoom finder with albada-bright frame. Magnification: approx. 0.47X |WIDE) - 1.05X (TELE) Shutter Programmed AE between-the-lens shutter with speeds approx. 1 /5 sec. — 1 /250 sec.. Bulb (1 /2 sec. — 60 min.), and Bulb-Timer (1—60 sec.). Multiple exposure function provided. Self-timer: 10 second delay self-timer with LED indication. Dual- frame self-timer mode provided. Flash: Built-in zoom flash. Recycle time: approx. 3 sec. with fresh lithium batteries. Film loading/winding: Auto film-loading. Two auto film-winding modes; Single Frame mode and Consecutive mode (1.2 sec./ frame). Film rewinding: Auto start at end of roll. Auto stop upon completion of rewinding. Rewinding in mid-roll provided. Power source: Two 3V lithium batteries (CR-123A or DL-123A) Battery life: Approx. 125 rolls of 24-exposure film without flash. Size & weight: 137.5 (W) x 76.5 (H) X 62 (D) mm (5.4" x 3" x 2.4"); 405 grams (14.2 oz.) without batteries.

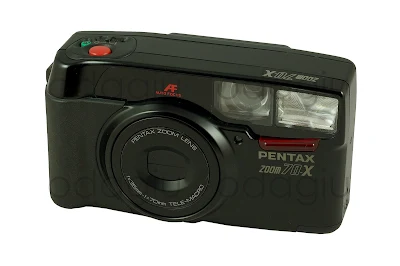

Pentax zoom 70-X   (1989)

SPECIFICATIONS:

Type:

35 mm fully automatic leaf-shutter camera with built-in

zoom lens and auto flash.

Film:

Auto film speed setting with 35 mm perforated DX-

coded film with ISO rating from 50 to 1600. 24 x 36

mm format.

Lens:

Pentax power zoom 35 — 70 mm f 3.5 — 6 7, 7 ele-

ments in 6 groups. Two zooming speeds.

Focusing system:

Pentax infrared active auto focusing. Range: 1 m (3.3

ft) — infinity; 0.6 m (2 ft) — 1 m (3.3 ft) in MACRO,

Exposure control:

Programmed auto-exposure control. Range: EV 9 —

16.5 in WIDE, EV11 - 16.5 in TELE and MACRO at

Auto mode (ISO 100). +1.5 EV exposure compensa-

tion provided.

Viewfinder:

Zoom finder with albada-bnght frame. Magnification:

approx. 0.49X (WIDE) - 0.90X (TELE).

Shutter:

Programmed AE between-the-lens shutter with

speeds approx.1 5 sec. — 1 250 sec. and Bulb (1 2

— 8 sec ). Multiple exposure function provided.

D

Self-timer:

10 second delay self-timer with LED indication. Dual-

frame self-timer mode provided

Flash:

Built-in zoom flash. Recycle time: approx. 3 sec. with

fresh lithium batteries.

Film loading/winding:

Auto film-loading. Two auto film-winding modes; single

frame mode and consecutive mode (1.2 sec. frame).

Film rewinding:

Auto start at end of roll. Auto stop upon completion of

rewinding. Rewinding in mid-roll provided.

Power source:

Two 3V lithium batteries (CR-123A or DL-123A)

Battery life:

Approx. 125 rolls of 24-exposure film without flash.

Size & weight:

137 |W) x 75.5 (H) X 48.5 (D) mm (5.4" x 3" x 1.9 );

380 grams (13.4 oz.) without battery.

DATE model

Imprinting mode:

Year, Month and Day ,1 Day. Hour and Minute" or

blank.

Size & weight:

137 (W) x 75.5 (H) x 50.5 (D) mm (5.4" x 3 x 2"); 390

grams (13.8 oz.) without battery.

Pentax PC-505   (1989)

SPECIFICATIONS: FILM: Auto film-speed setting with 35mm perforated DX coded film with ISO rating from  100 to 400. 24 x 36mm format. Use color print films only

LENS: 35mm F3.8, 3 elements 3 groups

VIEWFINDER: With Albada bright frame

FOCUSING: Infrared active autofocus system. Range: 1.1m (3.6ft) - infinity

SHUTTER: Programmed AE behind the lens shutter. Electro-magnetic release

EXPOSURE CONTROL: Programmed AE control. Range: EV10 — 15 (ISO 100),  EV8 — 13 (ISO 400)

FILM LOADING: Easy loading

FILM TRANSPORT: Auto film winding and rewinding. Rewinding stops upon completion

FLASH: Built-in auto discharge flash

SELF-TIMER: Approx. 10-sec-delay self-timer with LED indicator

BATTERIES: Two 1.5V AA size ALKALINE batteries (LR6 type). Ni-Cd batteries not usable

DIMENSIONS: 124.5(W)x 71(H) x50(D)mm

WEIGHT: 240g Pentax PC-303   (1989)   SPECIFICATIONS: Type: 35mm auto-focus leaf-shutter camera with  built-in flash Film: 35mm perforated cartridge film. 24mm X 36mm format Film Speed Setting: Manual film speed setting at ISO 100, 200 and 400 Film Winding/Rewinding: Automatic film winding and rewinding Lens: Pentax 35mm f/4.5. 3 elements in 3 groups. Focusing System: Active infrared automatic focusing with focus-lock device. Focusing range: 1.2m (3.9ft.) to infinity Shutter: Behind-the-lens shutter with fixed shutter speed at 1/125 sec Flash: Built-in type with guide number 10 (ISO 100/m). Recycling time: approx. 6 seconds with fresh alkaline batteries Power Source: Two 1.5V "AA" alkaline or manganese batteries. (Ni-Cd batteries not usable.) Battery Life: Approx. 40 rolls of 36-exposure film without flash; approx. 8 rolls of 36-exposure film with flash Dimensions: 117.5 (W) X 67 (H) X 47.5 (D) mm (4.6* X 2.6" X 1.9") Weight: 185g (6.5 oz.) without batteries. Pentax zoom 60-X   (1990) SPECIFICATIONS: Type: 35 mm fully automatic leaf-shutter camera with built-in zoom lens. Film: 35 mm perforated DX-coded film with ISO rating from 50 to 1600 (EV1 steps). 24 x 36 mm format. Film loading/winding: Auto film loading. Auto winding: single-frame advance mode. Film rewinding: Auto rewinding starts at end of roll. Auto stop upon completion of rewinding. Film roll can also be rewound in mid-roll. Lens: Pentax 38 mm to 60 mm, f/4.5 to f/6.7, power zoom lens, 6 elements in 5 groups, angle 59° to 39.5°. Focusing system: Infrared active autofocusing with focus-lock. Range: 0.6 m (2 ft) to infinity. Shutter: Programmed AE electronic shutter; approx. 1/250 to 1/4 sec; bulb (approx. 1/2 to 8 sec); electromagnetic release. Self-timer: Electronic red lamp indication. Approx. 10-sec delay. Cancellation after activation is possible. Dual-Frame and Double-Action Zoom Self-Timer can take 2 consecutive exposures. Zooming: 2-type system: Continuous Zoom and Instant Tele/Wide. Viewfinder: Zoom viewfinder with albada-bright frame. Autofocus frame. Exposure: Programmed auto-exposure. Ranges (ISO 100): Auto and Daylight Sync-EV9 to EV16.5 (38 mm), EV10.5 to EV16.5 (60 mm); Flash Off-EV6.5 to EV16.5 (38 mm), EV7.5 to EV16.5 (60 mm) Flash: Built-in automatic flash discharge. Automatic low- luminance firing in Auto mode. Charging time: Approx. 3 sec. (using fresh lithium batteries). Power source: Two 3V lithium batteries (equivalent to CR123A). Size and weight: 139 (W) x 76 (H) x 43 (D) mm (5.4" x 3.0" x 1.7"); 295g (10.4 oz) without batteries DATE model Imprinting mode: "Year, Month and Day", "Day, Hour and Minute" or blank. Size and weight: 139 (W) x 76 (H) x 45 (D) mm (5.4" x 3.0" x 1.8"); 305g(10.8 oz) without batteries Pentax zoom 105 Super   (1990)  SPECIFICATIONS: Type: 35 mm fully automatic leaf-shutter camera with built-in zoom lens. Film: 35 mm perforated DX-coded film with ISO rating from 25 to 3200 (EV1 step). 24 x 36 mm format Film loading: Auto film loading. Closing rear lid will automatically wind film to first exposure Film movement: Auto winding: single-frame advance mode; Consecutive Shooting mode (1.3 sec. interval between shots). Auto rewinding starts at end of roll. Auto stop upon completion of rewinding. With auxiliary rewind button, film roll can also be rewound in mid roll. Frame number: Automatic readout of successive frame numbers in ascending order when shooting, and descending order when rewinding. Lens: Pentax 38 to 105 mm, f.'4 to f 7.8, power zoom lens (with Macro), 11 elements in 9 groups, angle 59° to 23.5° Focusing system: Infrared active autofocusing with focus-lock Range: 1.35 m (4.4 ft) - «= (infinity); 0.75 m (2.5 ft) - 1.35 m (4.4 ft) in Macro; 0.45 m (1.5 ft| fixed in Super Macro. Zooming: 2 modes: Continuous Zoom and Step Zoom Shutter Programmed AE electronic shutter; approx. 1 /'250 to 1 /3 sec.; Bulb (1/2 sec. to 60 min.); Bulb-Timer (1 to 60 sec ); electromagnetic release. Self-timer: Electronic red lamp indication. Approx. 10-sec. delay. Cancellation after activation is possible. Multi-frame self-timer can take up to 5 frames. Viewfinder: Actual image zoom viewfinder. 87% field-of-view ratio Magnification 0 45X (38 mm position), 1.16X (105 mm position, 1 09X (Macro), 0.97X (Super Macro). Exposure: Programmed auto-exposure, range (IS0100) in Auto mode: EV9 ~ EV16.5 (38 mm), EV11.5 - EV16.5 (105 mm and Macro). Flash On and Flash Off: EV6 ~ 16.5 (38 mm), EV8 - 16.5 (105 mm and Macro) Exposure compensation: +3EV (0.5EV steps) Backlight compensation: +1.5EV compensation Multi-exposure: Possible Flash: Built-in zoom flash. Automatic low-luminance firing in Auto mode. Charging time — Approx. 3 sec. (using fresh lilhium batteries at normal temperature). Interval shooting: Electronically controlled, started by pressing shutter release button. Power source: Two 3V lithium batteries (equivalent to CR123A). Size and weight: 143.5 (W) x 82.5 (H) x 66.5 (D| mm (5.6" x 3.2" x 2.6"); 470 g (16.6 oz.) without batteries Accessory: Strap DATE model Data mechanism: Crystal quartz controlled: LCD with digital clock. Imprinting mode: "Year. Month and Day". "Day. Hour and Minute" or blank. Size & weight: 143.5 (W) x 82.5 (H) x 68.5 (D) mm (5.6" x 3.2" x 2.7"); 480 g (16.9 oz.) without batteries.
